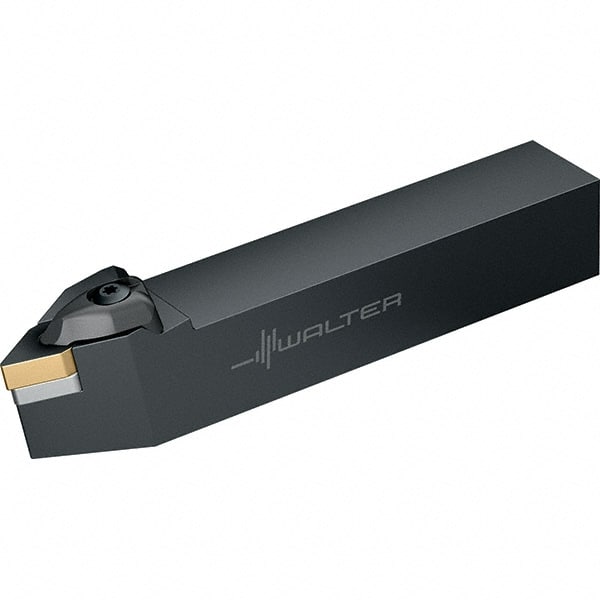

Indexable Turning Toolholder
Item #: 11738796
Brand: Walter
Model #: 7394636
Product Specifications
| Cutting Direction | Neutral |
| Toolholder Style | DDPN |
| Rake | Negative |
| Rake Angle | -5 |
| Multi-use Tool | No |
| Lead Angle | 62.5 |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Width (Inch) | 3/4 |
| Shank Width (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Overall Length (mm) | 114.30 |
| Overall Length (Decimal Inch) | 4.5000 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.6100 |
| Head Length (mm) | 40.89 |
| Back of Bar to Cutting Edge (Inch) | 3/8 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3750 |
| Standards | ISO; ANSI |
