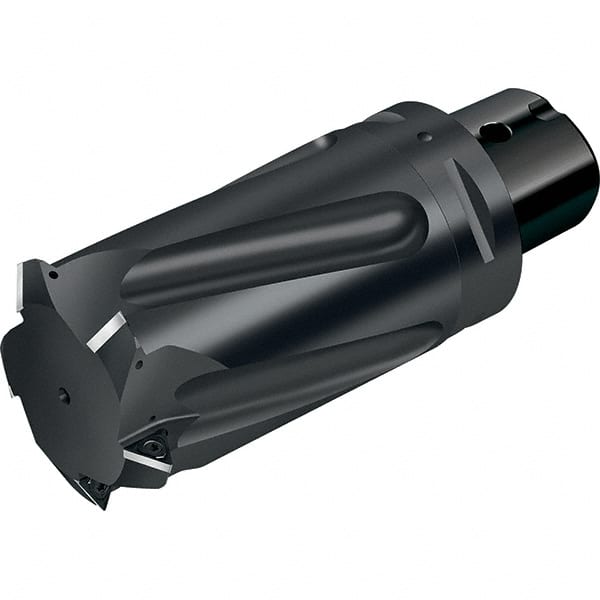

Walter - Indexable Thread Mills Cutting Diameter (mm): 60.00 Cutting Diameter (Decimal Inch): 2.3622
Item #: 11740685
Brand: Walter
Model #: 7493806
Exact Tooling IR#: 04
Product Specifications
Indexable Thread Mills; Cutting Diameter (mm): 60.00 ; Cutting Diameter (Decimal Inch): 2.3622 ; Maximum Hole Depth (mm): 115.00 ; Insert Style: P26300 ; Insert Size (Decimal Inch): 0.3190 ; Toolholder Style: T2713
| Cutting Diameter (mm) | 60.00 |
| Cutting Diameter (Decimal Inch) | 2.3622 |
| Maximum Hole Depth (mm) | 115.00 |
| Insert Style | P26300 |
| Insert Size (Decimal Inch) | 0.3190 |
| Toolholder Style | T2713 |
| Shank Diameter (mm) | 50.00 |
| Overall Length (mm) | 151.70 |
| Number of Threading Inserts | 4 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
