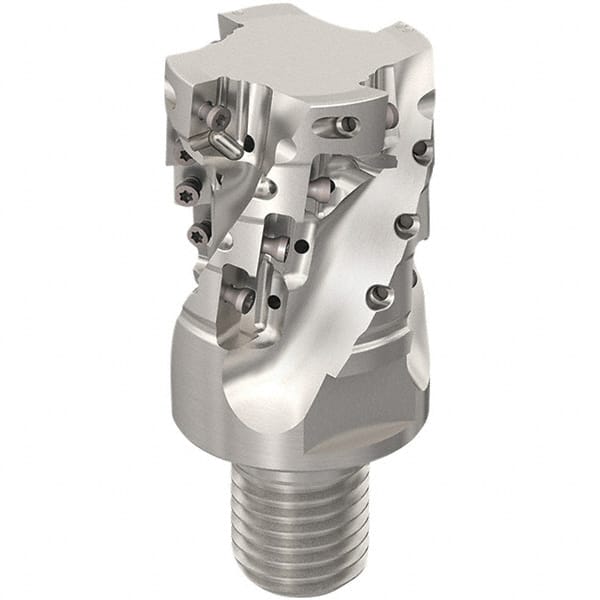

Seco - 40mm Cut Diam, 44mm Max Depth of Cut, 20mm Shank Diam, 61mm OAL, Indexable Square Shoulder Slot Milling End Mill - XO.X12.. Inserts, M20 Modular Connection, 90° Lead Angle, Through Coolant, Series 217.69-12-Helical
Item #: 11772399
Brand: Seco
Model #: 47759
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 20.00 |
| Modular Connection Size | M20 |
| Overall Length/Projection (mm) | 61.00 |
| Lead Angle | 90 |
| Series | 217.69-12-Helical |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 44.00 |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| End Mill Type | Slot Milling |
| Cutter Style | 217.69-12-Helical |
| Number of Flutes | 4 |
| Weldon Flat | No |
| Insert Compatibility | XO.X12.. |
| Maximum RPM | 16400 |
| Toolholder Material | Steel |
