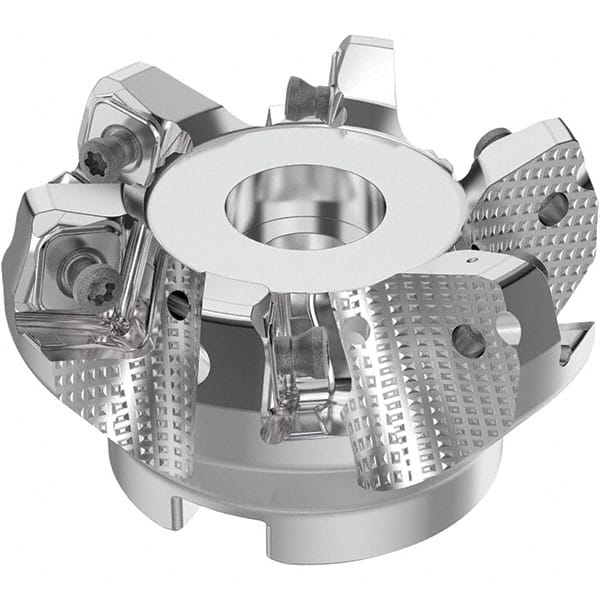

Seco - 2-1/2" Cut Diam, 3/4" Arbor Hole, 0.315" Max Depth of Cut, 71° Indexable Chamfer & Angle Face Mill - 6 Inserts, SN.. Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series R220.56
Item #: 11938545
Brand: Seco
Model #: 03241917
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 71 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | SN.. |
| Series | R220.56 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | R220.56 |
| Number of Flutes | 6 |
| Cutting Rake Angle | -6 |
| Hub Diameter (Decimal Inch) | 1.8500 |
| Keyway Width (Decimal Inch) | 0.3210 |
| Maximum Body Diameter (Decimal Inch) | 2.6770 |
| Maximum RPM | 7600 |
| Cutting Direction | Right Hand |
| Pitch | Close |
| Overall Diameter (Decimal Inch) | 2.6770 |
| Complete Insert Compatibility | SN..14..ZNTR |
| Toolholder Material | Steel |
