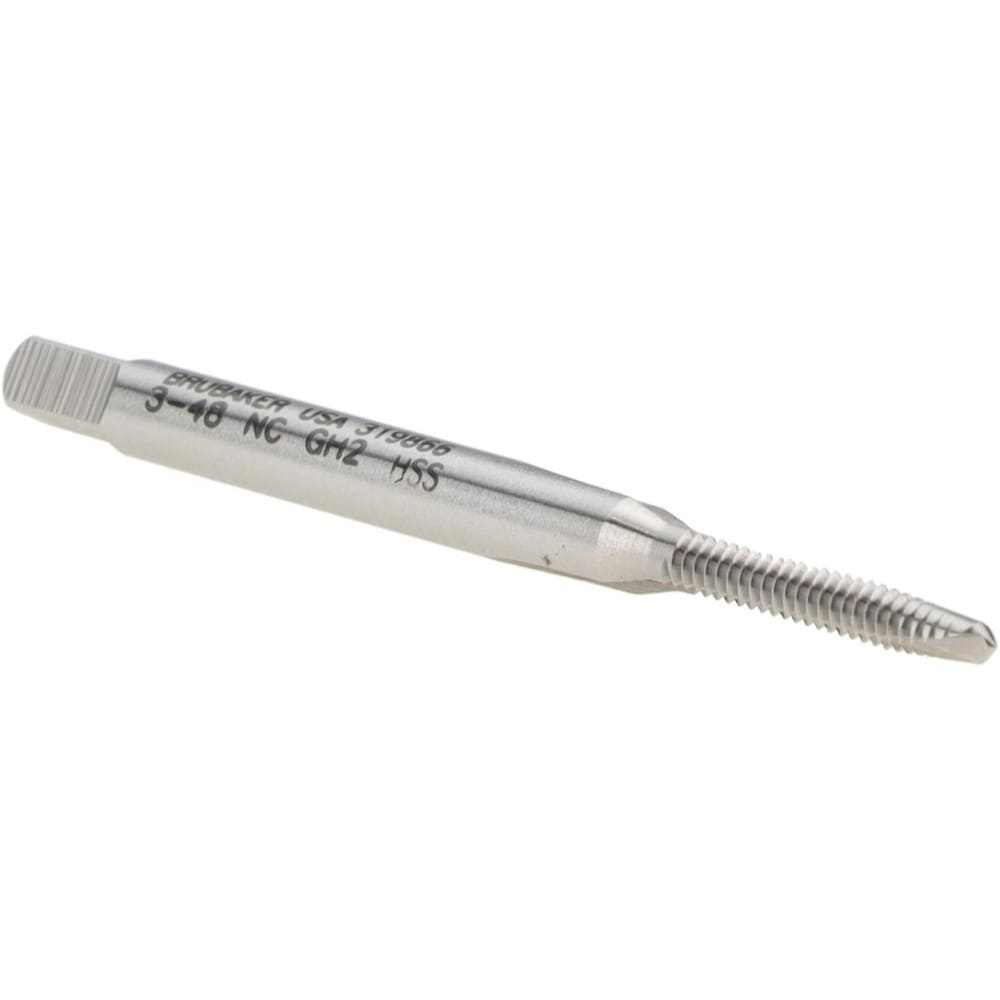

Spiral Point Tap: #3-48 UNC, 2 Flutes, Plug Chamfer, 2B Class of Fit, HSS, Bright/Uncoated Coated
Item #: 01896992
Brand: Made in USA
Model #: 11011-00-B
Product Specifications
| Thread Size (Inch) | #3-48 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Material | HSS |
| Thread Limit | H2 |
| Class Of Fit | 2B |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 2 |
| Material Application | General Purpose |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 48 |
| Overall Length (Inch) | 1-13/16 |
| Thread Pitch (Decimal Inch) | 0.0208 |
| Overall Length (Decimal Inch) | 1.8125 |
| Thread Length (Decimal Inch) | 0.5000 |
| Thread Length (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Application | Through-Hole Threading |
| Measurement Type | Fractional Inch |
| Series | 110 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
