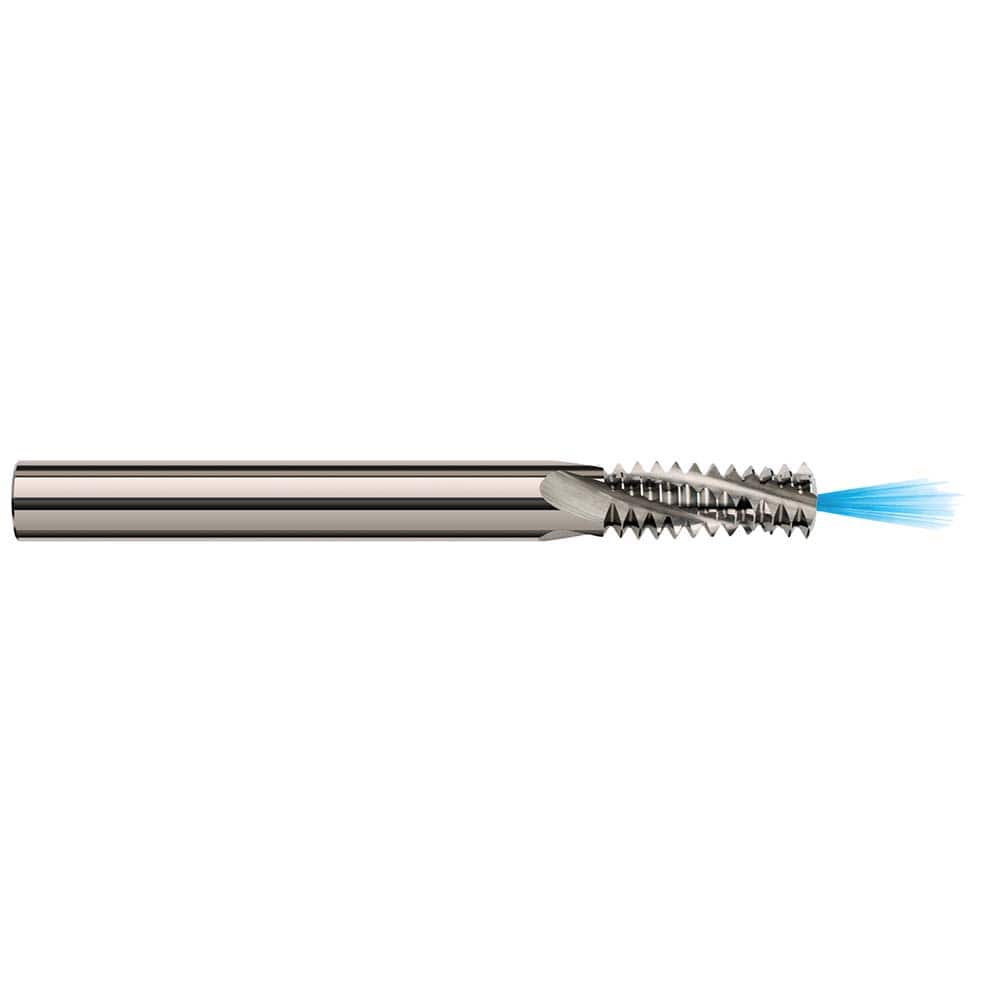

Harvey Tool - 5/16-18 Internal/External 18 TPI 1/4" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 12000097
Brand: Harvey Tool
Model #: 17354
Product Specifications
| Threads Per Inch | 18 |
| Material | Solid Carbide |
| Thread Size (Inch) | 5/16-18 |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 1/4 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.2350 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 5/8 |
| Finish/Coating | Uncoated |
| Through Coolant | Yes |
| Minimum Nominal Diameter | 5/16 |
| Minimum Nominal Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 2.37500 |
| Overall Length (Inch) | 2-3/8 |
