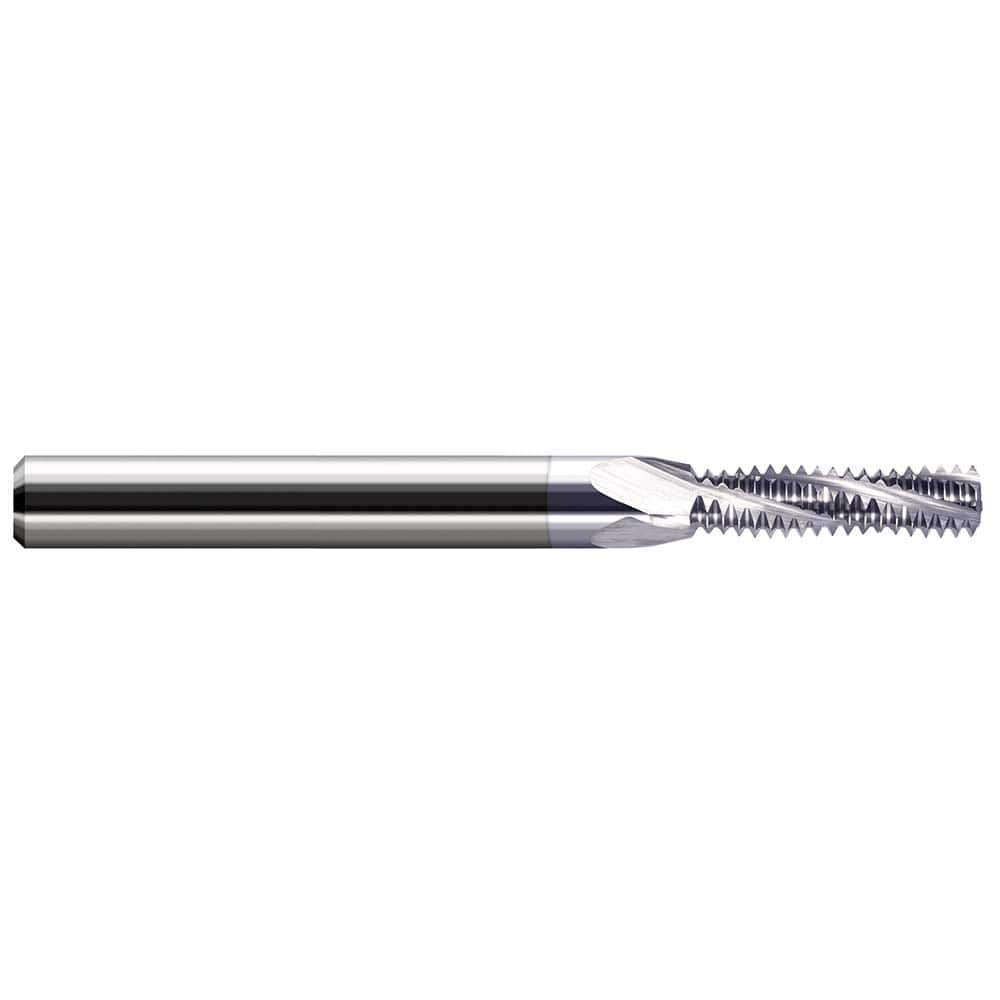

Harvey Tool - 1/4-20 Internal 20 TPI 1/4" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 12000261
Brand: Harvey Tool
Model #: 987144-C8
Product Specifications
| Threads Per Inch | 20 |
| Material | Solid Carbide |
| Thread Size (Inch) | 1/4-20 |
| Thread Type | Internal |
| Shank Diameter (Inch) | 1/4 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1950 |
| Length of Cut (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 3/4 |
| Finish/Coating | TiB2 |
| Through Coolant | No |
| Minimum Nominal Diameter | 1/4 |
| Minimum Nominal Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 2.50000 |
| Overall Length (Inch) | 2-1/2 |
