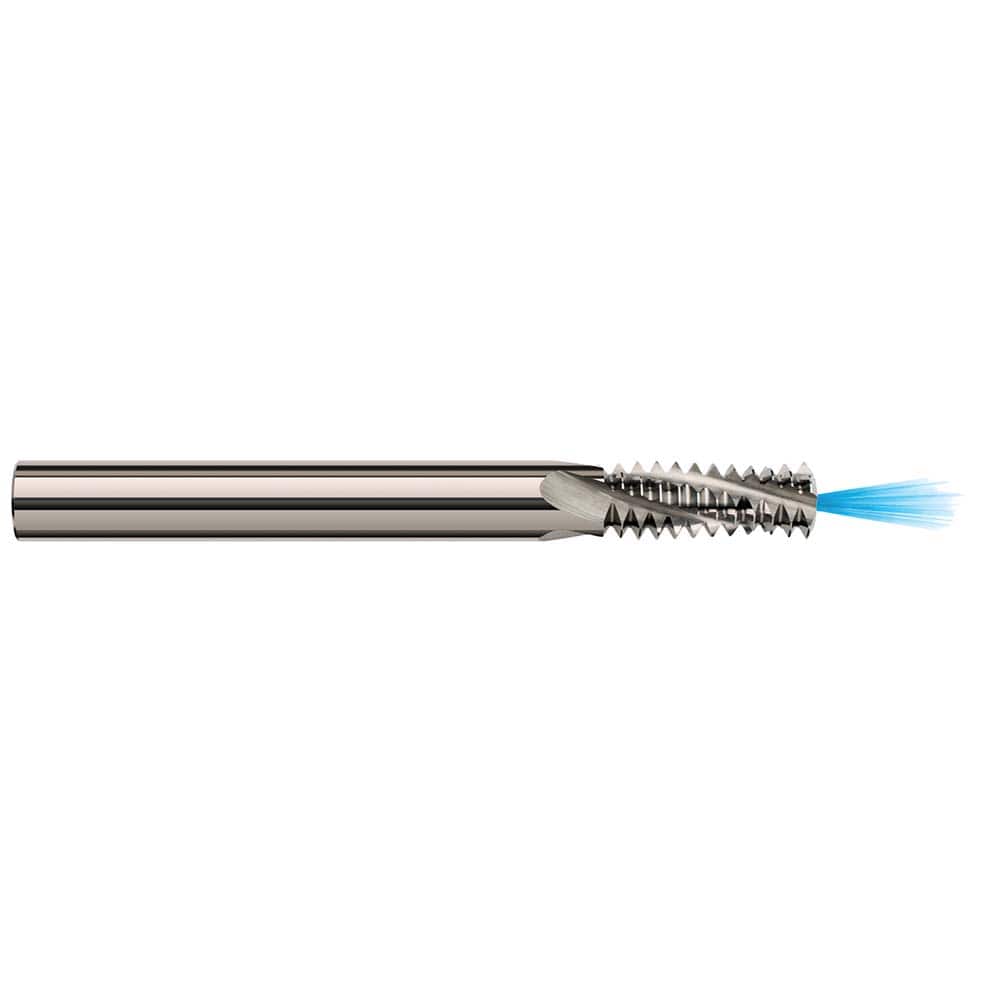

Harvey Tool - M5x.80 Internal/External 0.8mm Pitch 1/8" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 12000287
Brand: Harvey Tool
Model #: 819628
Product Specifications
| Pitch (mm) | 0.80 |
| Material | Solid Carbide |
| Thread Size (mm) | M5x.80 |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 1/8 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1200 |
| Length of Cut (Decimal Inch) | 0.3125 |
| Length of Cut (Inch) | 5/16 |
| Finish/Coating | Uncoated |
| Through Coolant | Yes |
| Minimum Nominal Diameter (mm) | 5 |
| Overall Length (Decimal Inch) | 2.00000 |
| Overall Length (Inch) | 2 |
