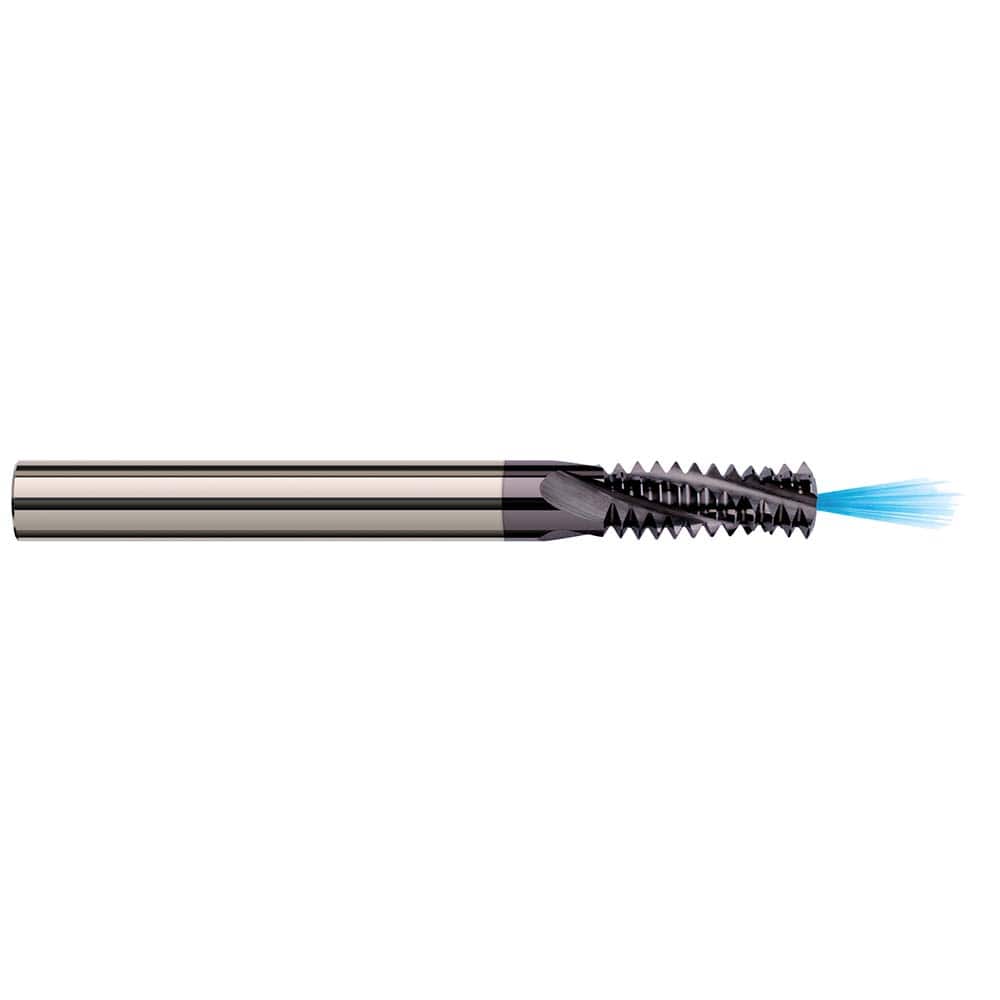

Harvey Tool - 10-24 Internal/External 24 TPI 3/16" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 12000378
Brand: Harvey Tool
Model #: 17334-C3
Product Specifications
| Threads Per Inch | 24 |
| Material | Solid Carbide |
| Thread Size (Inch) | 10-24 |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 3/16 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1450 |
| Length of Cut (Decimal Inch) | 0.3120 |
| Length of Cut (Inch) | 5/16 |
| Finish/Coating | AlTiN |
| Through Coolant | Yes |
| Minimum Nominal Diameter | #10 |
| Minimum Nominal Diameter (Decimal Inch) | 0.1900 |
| Overall Length (Decimal Inch) | 2.37500 |
| Overall Length (Inch) | 2-3/8 |
