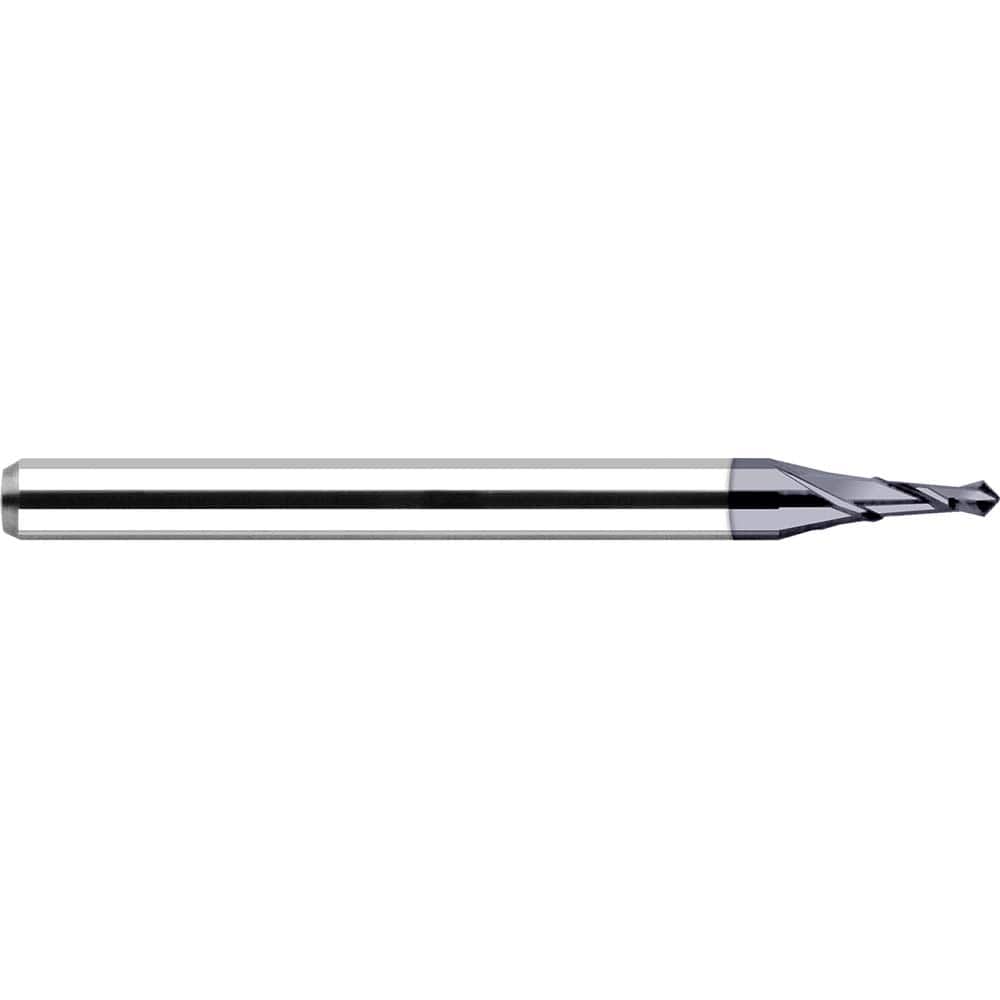

170° 1/4″ Diam 2-1/2″ OAL 2-Flute Solid Carbide Spotting Drill AlTiN Finish, 3/4″ Flute Length, 1/4″ Shank Diam
Item #: 12001277
Brand: Harvey Tool
Model #: 893716-C3
Product Specifications
| Drill Point Angle | 170 |
| Cutting Diameter (Inch) | 1/4 |
| Cutting Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Inch) | 2-1/2 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Single/Double Ended | Single |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Length (Inch) | 3/4 |
| Flute Length (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Point Type | Harvey Type II |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| Web Thickness | 0.0180 |
