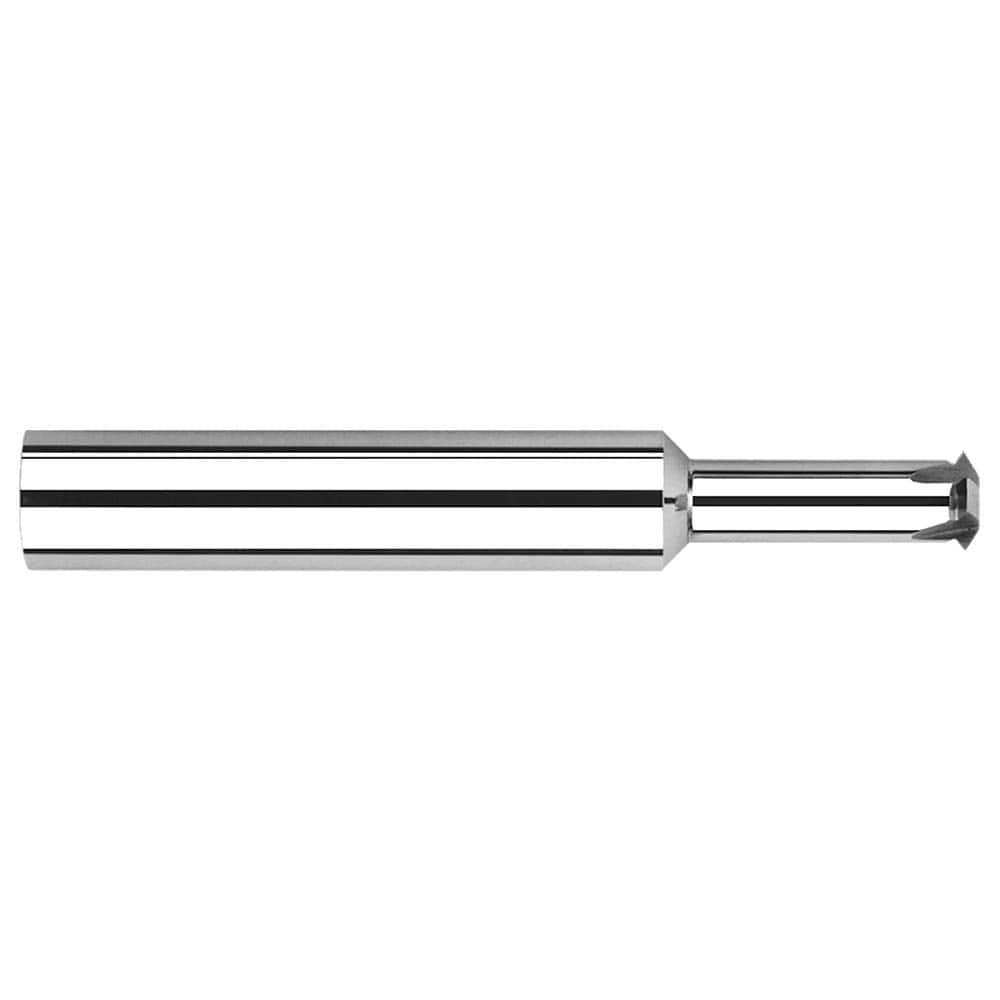

Harvey Tool - Single Profile Thread Mills; Maximum Pitch (mm): 2.00 ; Minimum Pitch (mm): 1.50 ; Thread Type: Internal/External ; Minimum Nominal Diameter (mm): 16 ; Cutting Diameter (Decimal Inch): 13.7000 ; Shank Diameter (mm): 14.0000
Item #: 12002291
Brand: Harvey Tool
Model #: 890339
Product Specifications
Single Profile Thread Mills; Maximum Pitch (mm): 2.00 ; Minimum Pitch (mm): 1.50 ; Thread Type: Internal/External ; Minimum Nominal Diameter (mm): 16 ; Cutting Diameter (Decimal Inch): 13.7000 ; Shank Diameter (mm): 14.0000
| Maximum Pitch (mm) | 2.00 |
| Minimum Pitch (mm) | 1.50 |
| Thread Type | Internal/External |
| Minimum Nominal Diameter (mm) | 16 |
| Cutting Diameter (Decimal Inch) | 13.7000 |
| Shank Diameter (mm) | 14.0000 |
| Material | Solid Carbide |
| Number of Flutes | 6 |
| Neck Diameter (Decimal Inch) | 8.2200 |
| Neck Length (Decimal Inch) | 0.9843 |
| Thread Size | M16x1.50 - M16x2.00 |
| Overall Length (Decimal Inch) | 2.95280 |
| Overall Length (mm) | 75.0000 |
| Thread Standard | UN 60 Degrees |
| Finish/Coating | Uncoated |
