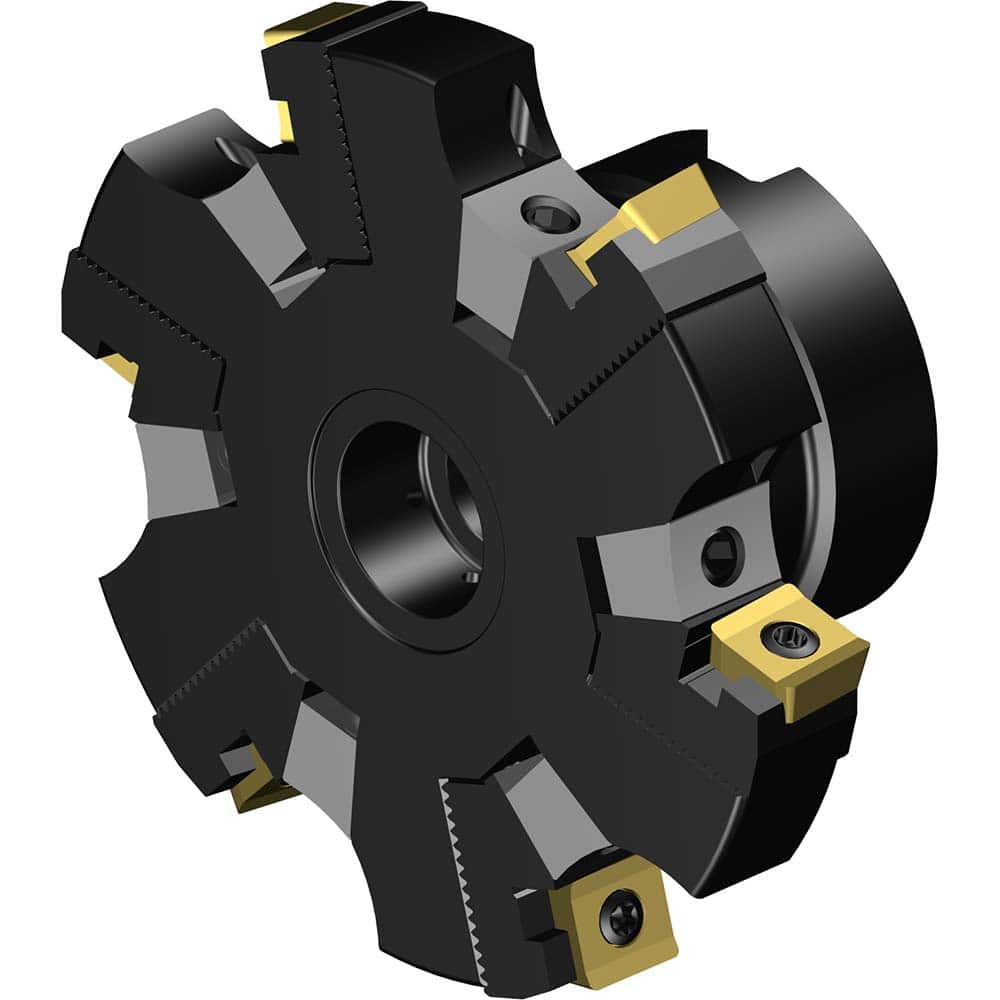

Sandvik Coromant - Indexable Slotting Cutters; Connection Type: Arbor Hole ; Maximum Depth of Cut (mm): 10.60 ; Cutter Diameter (mm): 100.00 ; Hole Diameter (mm): 27.0000 ; Number of Teeth: 6 ; Toolholder Style: R331.52
Item #: 12020319
Brand: Sandvik Coromant
Model #: 7843399
Product Specifications
Indexable Slotting Cutters; Connection Type: Arbor Hole ; Maximum Depth of Cut (mm): 10.60 ; Cutter Diameter (mm): 100.00 ; Hole Diameter (mm): 27.0000 ; Number of Teeth: 6 ; Toolholder Style: R331.52
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 10.60 |
| Cutter Diameter (mm) | 100.00 |
| Hole Diameter (mm) | 27.0000 |
| Number of Teeth | 6 |
| Toolholder Style | R331.52 |
| Series | CoroMill 331 |
| Insert Style | L331.1A |
| Staggered Tooth | No |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw/Clamp |
| Maximum RPM | 14000.000 |
| Hub Diameter (Decimal Inch) | 51.0000 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.52C-100Q27KML |
