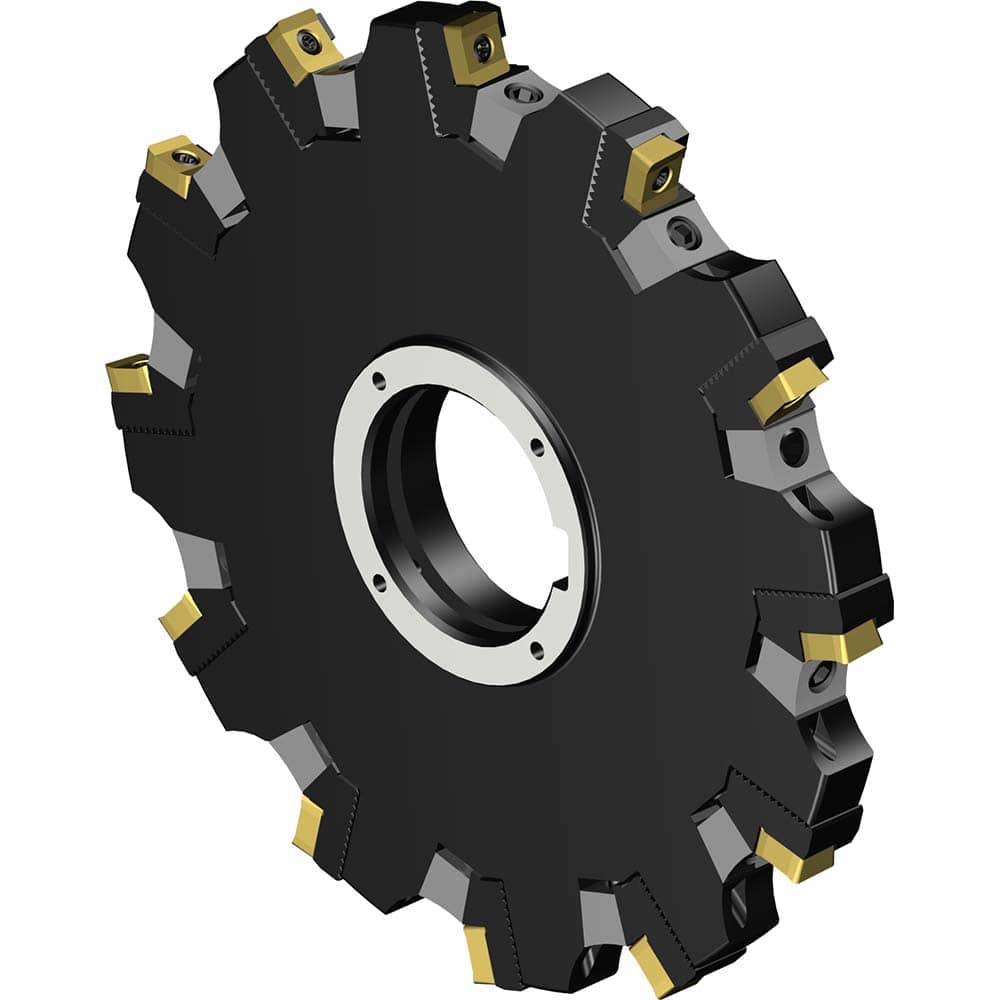

Sandvik Coromant - Indexable Slotting Cutters; Connection Type: Arbor Hole ; Maximum Depth of Cut (mm): 7.60 ; Cutter Diameter (mm): 160.00 ; Hole Diameter (mm): 40.0000 ; Number of Teeth: 12 ; Toolholder Style: L331.52
Item #: 12020376
Brand: Sandvik Coromant
Model #: 7843381
Product Specifications
Indexable Slotting Cutters; Connection Type: Arbor Hole ; Maximum Depth of Cut (mm): 7.60 ; Cutter Diameter (mm): 160.00 ; Hole Diameter (mm): 40.0000 ; Number of Teeth: 12 ; Toolholder Style: L331.52
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 7.60 |
| Cutter Diameter (mm) | 160.00 |
| Hole Diameter (mm) | 40.0000 |
| Number of Teeth | 12 |
| Toolholder Style | L331.52 |
| Series | CoroMill 331 |
| Insert Style | L331.1A |
| Staggered Tooth | No |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw/Clamp |
| Maximum RPM | 12400.000 |
| Hub Diameter (Decimal Inch) | 55.0000 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | L331.52C-160S40FM |
