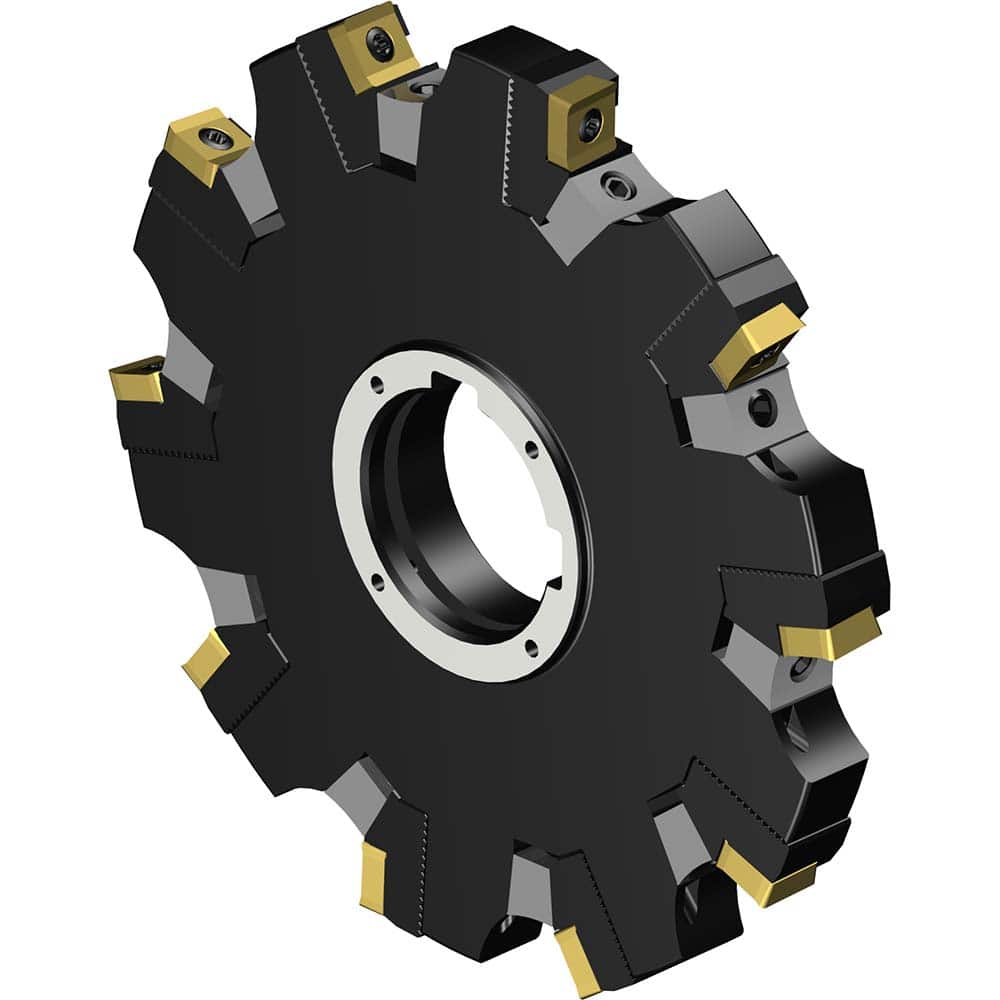

Indexable Slotting Cutter: 160 mm Cutter Dia, Arbor Hole Connection, 10.6 mm Depth of Cut, 40 mm Hole, Left Hand Cut Screw & Clamp, Uses 10 L331.1A Inserts, 10 Teeth, Through Coolant
Item #: 12020467
Brand: Sandvik Coromant
Model #: 7843382
Product Specifications
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 10.60 |
| Hole Diameter (Mm) ( - 0 Decimals) | 40.00 |
| Cutter Diameter (mm) | 160.00 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw; Clamp |
| Number Of Cutter Inserts | 10 |
| Compatible Insert Style | L331.1A |
| Staggered Tooth | No |
| Series | CoroMill 331 |
| Toolholder Style | L331.52 |
| Hub Diameter (mm) | 55.00 |
| Maximum RPM | 10800 |
| Manufacturers Catalog Number | L331.52C-160S40KM |
| Overall Length (mm) | 16.75 |
| Number Of Teeth | 10 |
| Coolant Through | Yes |
