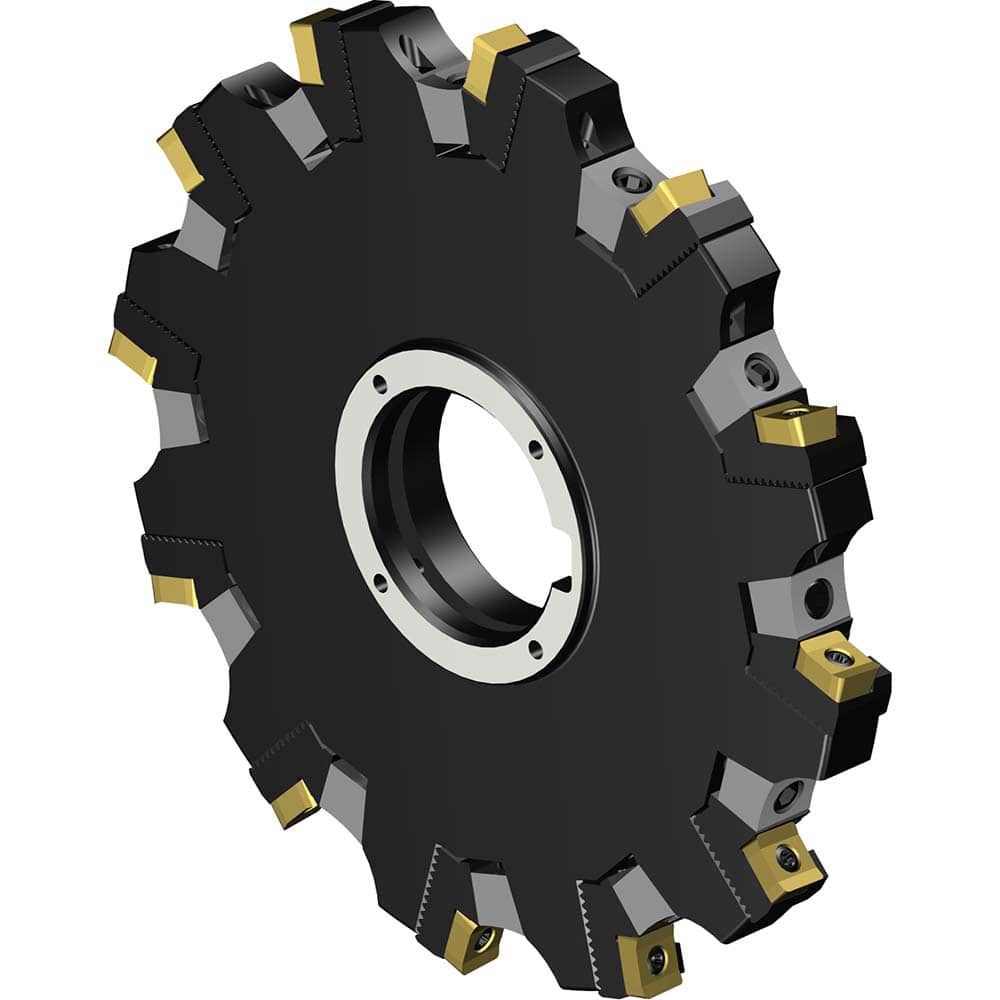

Indexable Slotting Cutter: 152 mm Cutter Dia, Arbor Hole Connection, 38.1 mm Hole, Right Hand Cut Screw & Clamp, Uses 12 R331.1A Inserts, 12 Teeth, Through Coolant
Item #: 12020483
Brand: Sandvik Coromant
Model #: 7848383
Product Specifications
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (Decimal Inch) | 0.2990 |
| Hole Diameter (Mm) ( - 0 Decimals) | 38.10 |
| Cutter Diameter (mm) | 152.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | R331.1A |
| Staggered Tooth | No |
| Series | CoroMill 331 |
| Toolholder Style | R331.52 |
| Hub Diameter (mm) | 52.00 |
| Maximum RPM | 12400 |
| Manufacturers Catalog Number | R331.52C-152T38FM |
| Overall Length (mm) | 14.00 |
| Number Of Teeth | 12 |
| Coolant Through | Yes |
