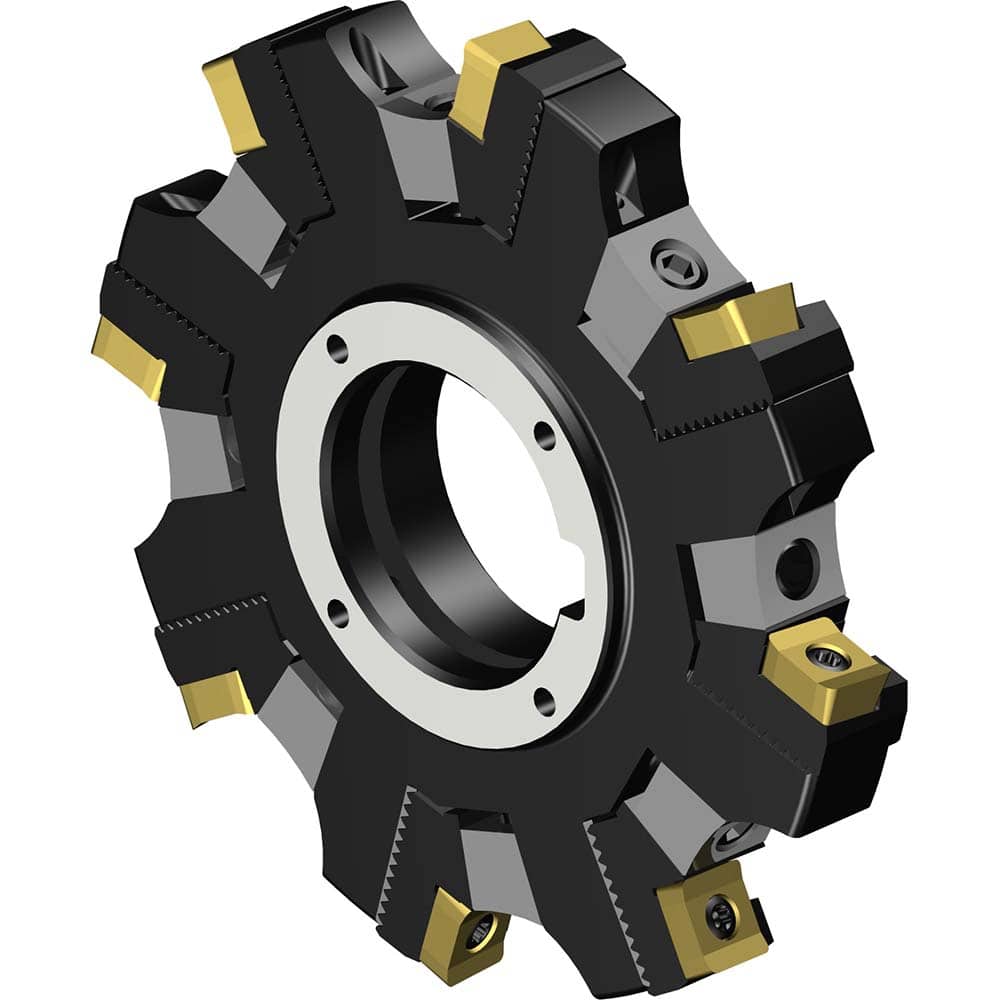

Sandvik Coromant - Indexable Slotting Cutters; Connection Type: Arbor Hole ; Maximum Depth of Cut (Decimal Inch): 0.2990 ; Cutter Diameter (mm): 101.00 ; Hole Diameter (Inch): 1.25 ; Number of Teeth: 8 ; Toolholder Style: R331.52
Item #: 12020525
Brand: Sandvik Coromant
Model #: 7848381
Product Specifications
Indexable Slotting Cutters; Connection Type: Arbor Hole ; Maximum Depth of Cut (Decimal Inch): 0.2990 ; Cutter Diameter (mm): 101.00 ; Hole Diameter (Inch): 1.25 ; Number of Teeth: 8 ; Toolholder Style: R331.52
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (Decimal Inch) | 0.2990 |
| Cutter Diameter (mm) | 101.00 |
| Hole Diameter (Inch) | 1.25 |
| Number of Teeth | 8 |
| Toolholder Style | R331.52 |
| Series | CoroMill 331 |
| Insert Style | R331.1A |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw/Clamp |
| Maximum RPM | 15900.000 |
| Hub Diameter (Decimal Inch) | 46.0000 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.52C-101T32FM |
