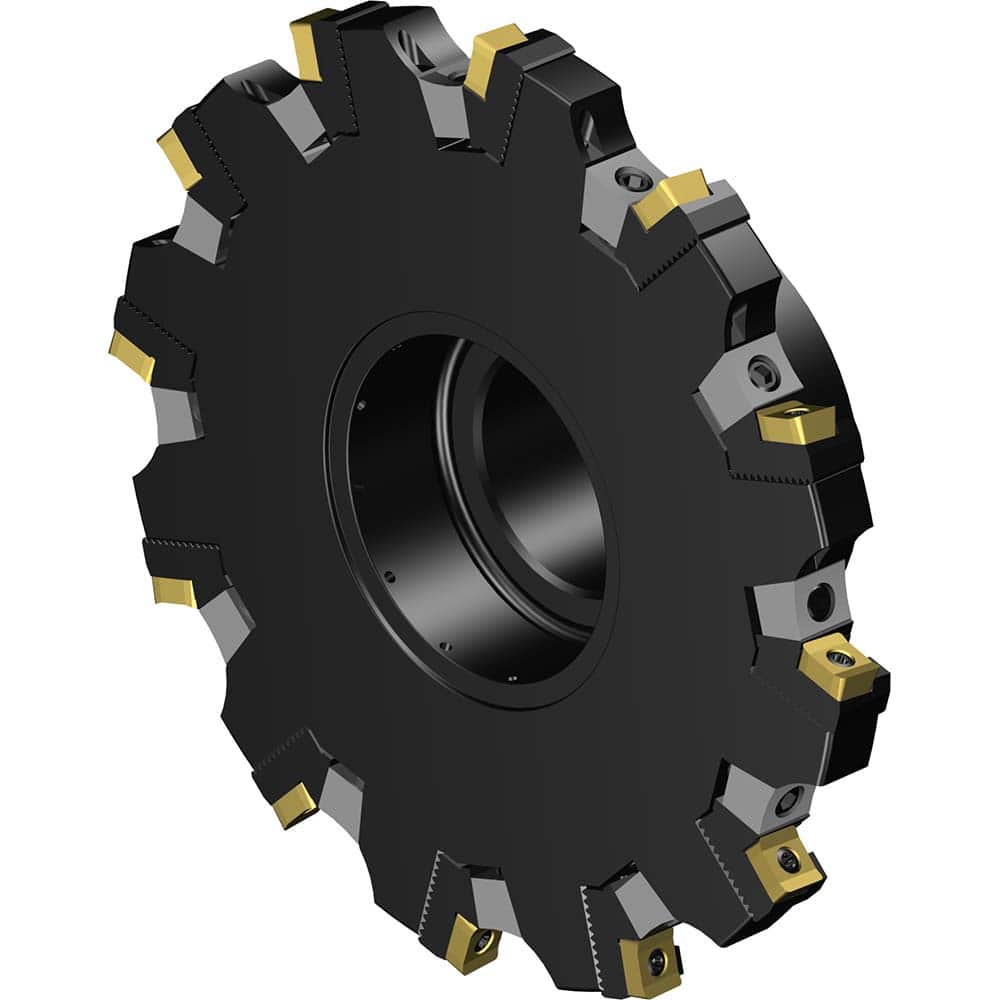

Indexable Slotting Cutter: 160 mm Cutter Dia, Arbor Hole Connection, 7.6 mm Depth of Cut, 40 mm Hole, Right Hand Cut Screw & Clamp, Uses 12 R331.1A Inserts, 12 Teeth, Through Coolant
Item #: 12020640
Brand: Sandvik Coromant
Model #: 7848297
Product Specifications
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 7.60 |
| Hole Diameter (Mm) ( - 0 Decimals) | 40.00 |
| Cutter Diameter (mm) | 160.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | R331.1A |
| Staggered Tooth | No |
| Series | CoroMill 331 |
| Toolholder Style | R331.52 |
| Hub Diameter (mm) | 73.00 |
| Maximum RPM | 12400 |
| Manufacturers Catalog Number | R331.52C-160Q40FMR |
| Overall Length (mm) | 50.00 |
| Number Of Teeth | 12 |
| Coolant Through | Yes |
