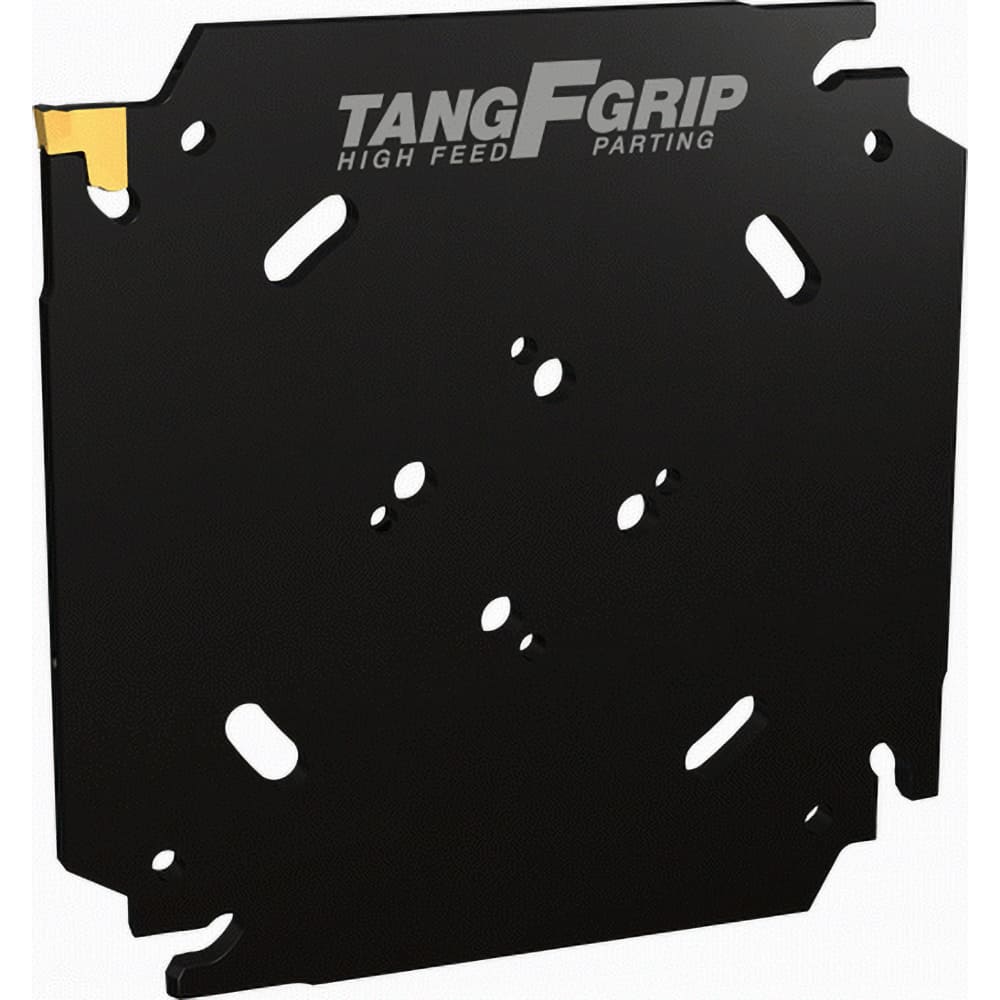

Iscar - Indexable Cut-Off Blades; Single or Double End: Double ; Cutting Direction: Right Hand ; Blade Height (mm): 61.00 ; Blade Width (mm): 2.50 ; Blade Overall Length (mm): 61.00 ; Blade Style: TGAQ
Item #: 12038840
Brand: Iscar
Model #: 3367509
Product Specifications
Indexable Cut-Off Blades; Single or Double End: Double ; Cutting Direction: Right Hand ; Blade Height (mm): 61.00 ; Blade Width (mm): 2.50 ; Blade Overall Length (mm): 61.00 ; Blade Style: TGAQ
| Single or Double End | Double |
| Cutting Direction | Right Hand |
| Blade Height (mm) | 61.00 |
| Blade Width (mm) | 2.50 |
| Blade Overall Length (mm) | 61.00 |
| Blade Style | TGAQ |
| Insert Style | TAG |
| Insert Width (mm) | 3.00 |
| Maximum Workpiece Diameter (mm) | 82 |
| Maximum Depth of Cut (mm) | 41.00 |
| Minimum Insert Width (mm) | 3.00 |
| Maximum Insert Width (mm) | 3.00 |
