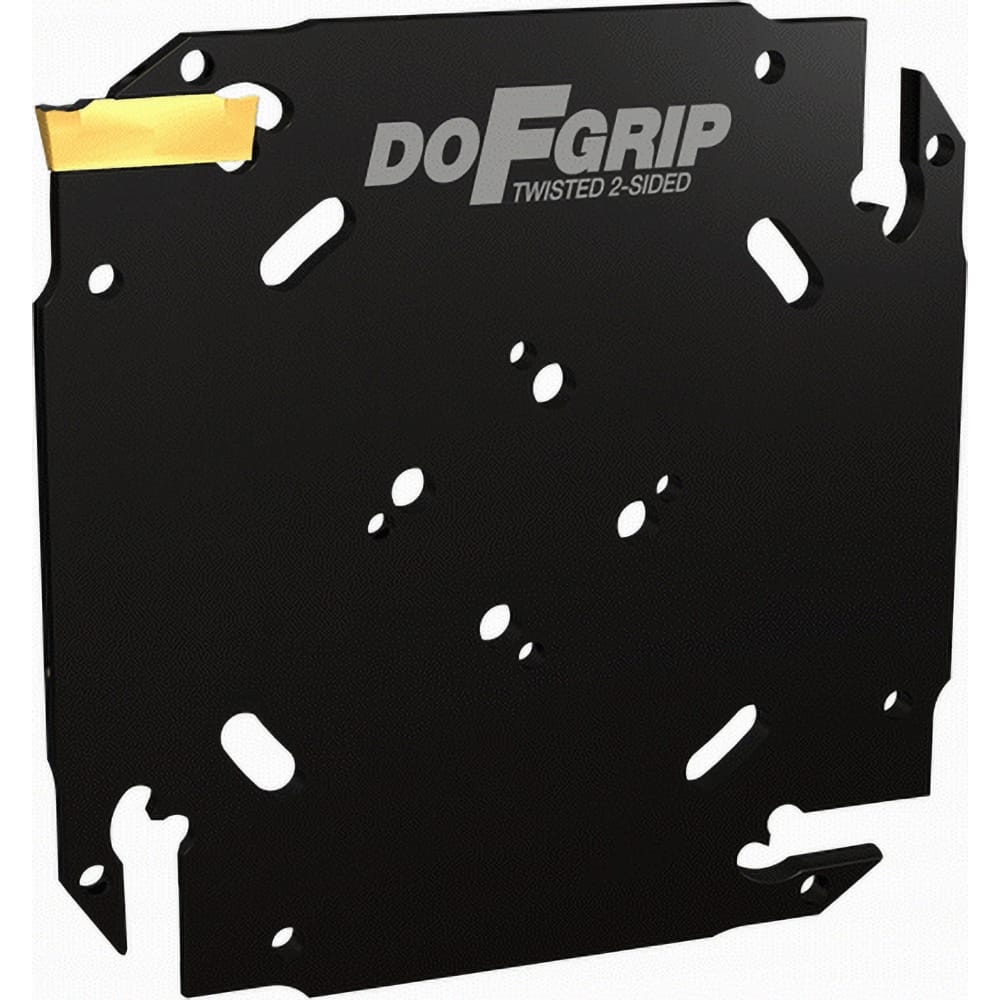

Iscar - Indexable Cut-Off Blades; Single or Double End: Double ; Cutting Direction: Right Hand ; Blade Height (mm): 90.50 ; Blade Width (mm): 5.00 ; Blade Overall Length (mm): 90.50 ; Blade Style: DGAQ
Item #: 12038998
Brand: Iscar
Model #: 3367520
Product Specifications
Indexable Cut-Off Blades; Single or Double End: Double ; Cutting Direction: Right Hand ; Blade Height (mm): 90.50 ; Blade Width (mm): 5.00 ; Blade Overall Length (mm): 90.50 ; Blade Style: DGAQ
| Single or Double End | Double |
| Cutting Direction | Right Hand |
| Blade Height (mm) | 90.50 |
| Blade Width (mm) | 5.00 |
| Blade Overall Length (mm) | 90.50 |
| Blade Style | DGAQ |
| Insert Style | DG |
| Insert Width (mm) | 5.00 |
| Maximum Workpiece Diameter (mm) | 120 |
| Maximum Depth of Cut (mm) | 60.00 |
| Minimum Insert Width (mm) | 5.00 |
| Maximum Insert Width (mm) | 5.00 |
