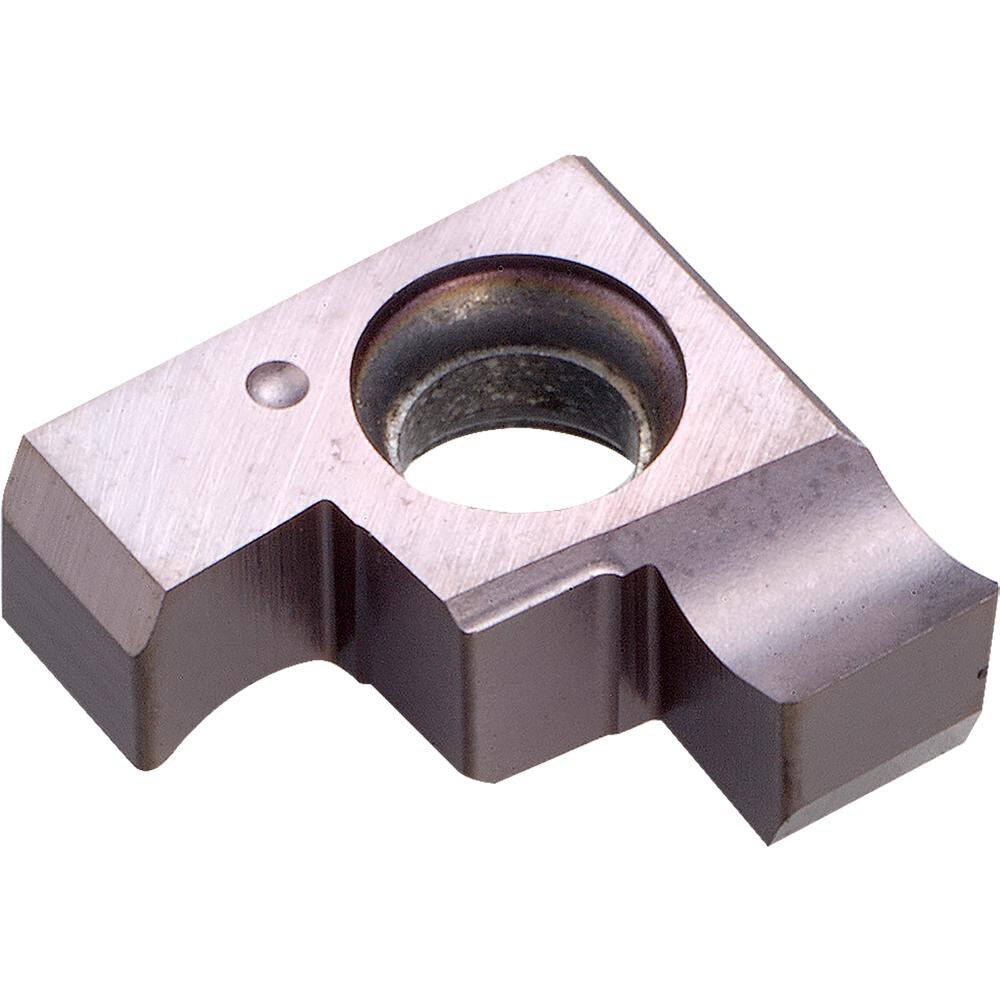

Grooving Insert: GE 120005 , PR2025, Carbide
Item #: 78036464
Brand: Kyocera
Model #: TLY00107
Product Specifications
| Insert Style | GE |
| Insert Size Code | 120005 |
| Cutting Width (mm) | 1.20 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (mm) | 2.20 |
| Insert Material | Carbide |
| Manufacturer Grade | PR2025 |
| Full Radius | No |
| Corner Radius (mm) | 0.05 |
| Number Of Cutting Edges | 2 |
| Rake | Positive |
| Measurement Type | Metric |
| Face Grooving | No |
| Insert Holding Method | Screw |
| Insert Size | 120005 |
| Lead Angle | 0 |
| Multi-use Tool | No |
| Coating Process | PVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | M |
| Ansi Code | GEL120005BPR2025 |
| Iso Code | GEL120-005B |
| Manufacturers Catalog Number | temp-TLY00194 |
| UNSPSC Code | 23242107 |
| Cut Condition | Interrupted |
| Minimum Groove Width (mm) | 1.20 |
| Maximum Groove Width (mm) | 1.20 |
| Chip Breaker | None |
| Gage Diameter (Decimal Inch) | 0.1063 |
| Coating/Finish | MEGACOAT NANO EX |
| For Use With | SIGEL1010B-WH; SIGEL06EH; SIGEL1010B-EH; SIGEL1210B-EH; SIGEL1210B-WH |
| Country of Origin | Japan |
