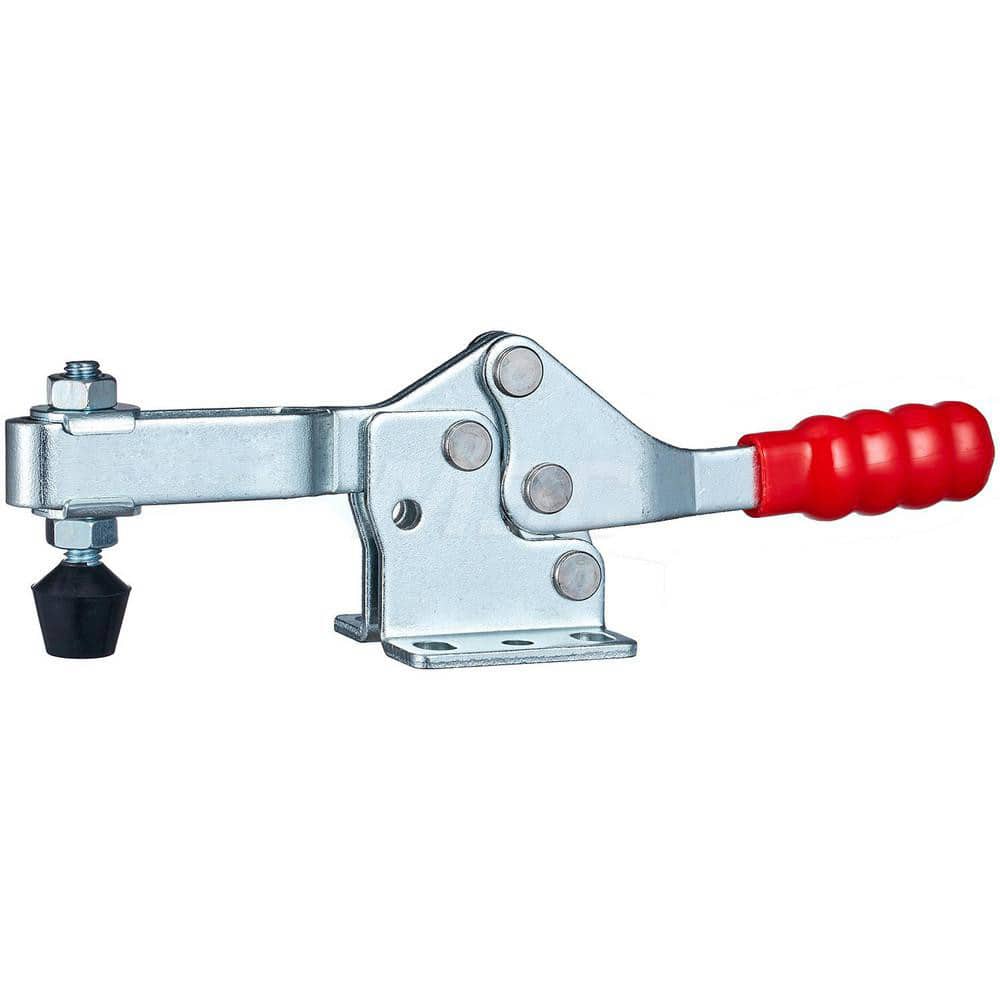

Manual Hold-Down Toggle Clamp: Horizontal, 200 lb Capacity, U-Bar, Flanged Base 61 ° Handle Movement, 91 ° Bar Opening, Steel
Item #: 12097861
Brand: Hertel
Model #: CH-D217-U
Product Specifications
| Handle Orientation | Horizontal |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (kg) | 90.72 |
| Holding Capacity (N) | 889.64 |
| Holding Capacity (Lb.) | 200.00 |
| Length Distance Between Mount Holes (mm) | 26.16 |
| Length Distance Between Mount Holes | 26.16 mm; 1.03 in |
| Length Distance Between Mount Holes (Inch) | 1.03 |
| Width Distance Between Mount Holes (mm) | 25.60 |
| Width Distance Between Mount Holes | 1.007 in; 25.6 mm |
| Width Distance Between Mount Holes (Decimal Inch) | 1.0070 |
| Height Under Bar (Decimal Inch) | 0.9840 |
| Height Under Bar (mm) | 25.00 |
| Overall Length (mm) | 167.50 |
| Overall Length (Decimal Inch) | 6.5940 |
| Overall Height (Decimal Inch) | 1.9200 |
| Overall Height (Mm - 5 Decimals) | 48.80 |
| Base Length (mm) | 37.50 |
| Base Width (Inch) | 1.5500 |
| Base Width | 39.40 |
| Handle Style | Straight |
| Material | Steel |
| Handle Material | Steel |
| Handle Color | Red |
| Mounting Hole Diameter (mm) | 5.80 |
| Mounting Hole Diameter (Decimal Inch) | 0.2300 |
| Bar Opening (Degrees) | 91 |
| Handle Movement (Degrees) | 61 |
| Spindle Length (Decimal Inch) | 1.7320 |
| Spindle Length (mm) | 44.00 |
| Bar Width (mm) | 12.40 |
| Bar Width (Decimal Inch) | 0.4880 |
| Bar Thickness (mm) | 13.00 |
| Bar Thickness (Decimal Inch) | 0.5120 |
| Front Of Base To Toggle Tip | 2.30 in |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.3000 |
| Front of Base To Tip Of Toggle Bar (mm) | 58.40 |
| Number Of Mounting Holes | 4 |
| Finish Coating | Zinc-Plated |
 | |
| MSC Part # | 12097861 |
| Mfr Part # | CH-D217-U |
| Country of OriginCountry of Origin is subject to change | China |
