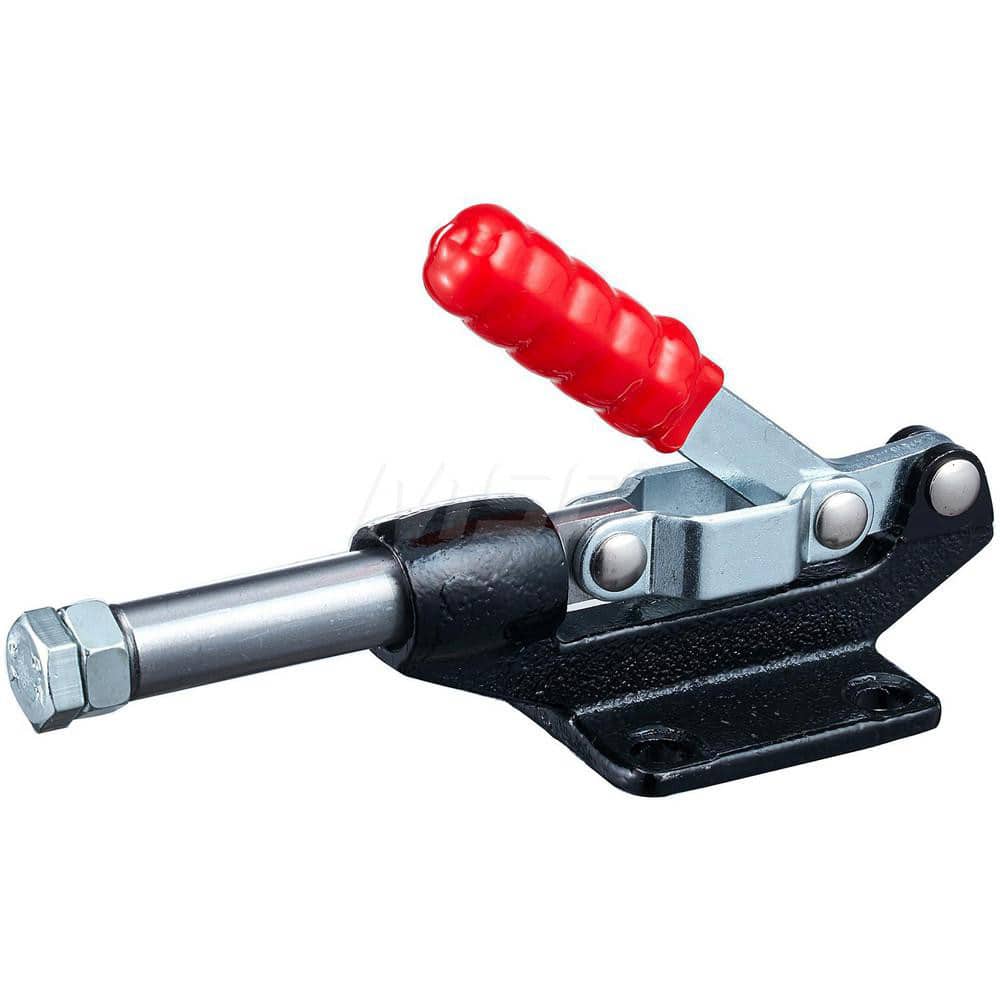

Standard Straight Line Action Clamp: 850 lb Load Capacity, 1.6535″ Plunger Travel, Flanged Base, Steel 4 Mounting Hole, 0.328″ Hole, 0.63″ Plunger Dia, Straight Handle
Item #: 12098505
Brand: Hertel
Model #: CH-304-E
Product Specifications
| Load Capacity (Lb. - 3 Decimals) | 850.00 |
| Load Capacity (N) | 3780.97 |
| Load Capacity | 385.55 |
| Load Capacity | 850 lb; 3780.97 N; 385.55 lb |
| Plunger Travel (Decimal Inch) | 1.6535 |
| Plunger Travel | 1.6535 in; 42 mm |
| Plunger Travel (mm) | 42.00 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 3/8-16 |
| Plunger Centerline Height (mm) | 31.80 |
| Plunger Centerline Height (Decimal Inch) | 1.2520 |
| Plunger Centerline Height | 31.8 mm; 1.252 in |
| Plunger Diameter (mm) | 16.00 |
| Plunger Diameter (Decimal Inch) | 0.6300 |
| Base Style | Flanged |
| Handle Style | Straight |
| Clamp Material | Steel |
| Material | Steel |
| Overall Length (Decimal Inch) | 6.2290 |
| Overall Length (mm) | 158.20 |
| Overall Height (Mm - 5 Decimals) | 96.40 |
| Overall Height (Decimal Inch) | 3.7950 |
| Base Length (mm) | 58.80 |
| Base Length (Decimal Inch) | 2.3150 |
| Base Width (Inch) | 2.2520 |
| Base Width | 57.20 |
| Handle Color | Red |
| Length Distance Between Mount Holes (mm) | 41.10 |
| Length Distance Between Mount Holes (Inch) | 1.6200 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.6180 |
| Width Distance Between Mount Holes (mm) | 41.10 |
| Mounting Hole Diameter (mm) | 8.33 |
| Mounting Hole Diameter (Decimal Inch) | 0.3280 |
| Includes | (2) Nuts; (1) Spindle |
| Holding Capacity (kg) | 385.55 |
| Holding Capacity (N) | 3780.97 |
| Handle Movement (Degrees) | 180 |
| Spindle Length (mm) | 50.00 |
| Spindle Length (Decimal Inch) | 1.9700 |
| Number Of Mounting Holes | 4 |
| Finish Coating | Zinc-Plated |
| Holding Capacity (Lb.) | 850.00 |
 | |
| MSC Part # | 12098505 |
| Mfr Part # | CH-304-E |
| Country of OriginCountry of Origin is subject to change | China |
