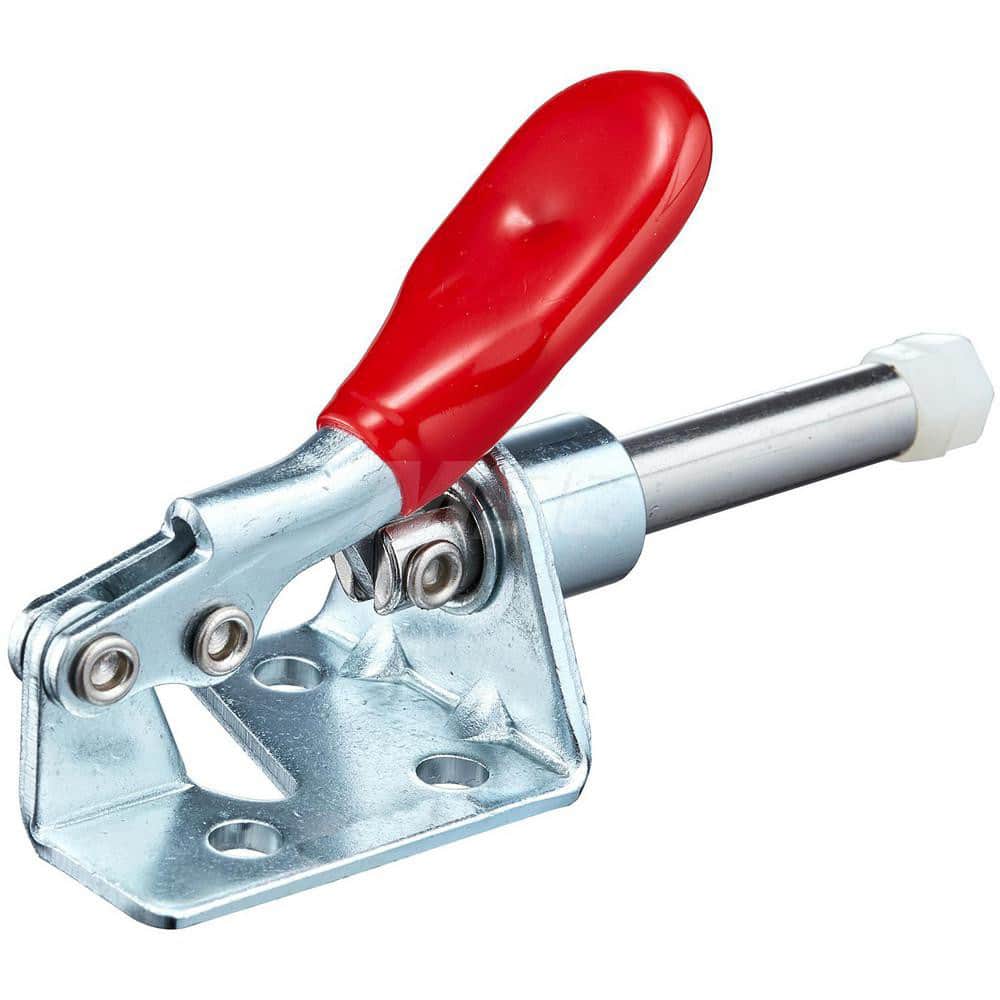

Standard Straight Line Action Clamp: 100 lb Load Capacity, 0.6575″ Plunger Travel, Flanged Base, Steel 3 Mounting Hole, 0.172″ Hole, 0.252″ Plunger Dia, Straight Handle
Item #: 12098612
Brand: Hertel
Model #: CH-301-A
Product Specifications
| Load Capacity (Lb. - 3 Decimals) | 100.00 |
| Load Capacity (N) | 444.82 |
| Load Capacity | 45.36 |
| Load Capacity | 45.36 lb; 444.82 N; 100 lb |
| Plunger Travel (Decimal Inch) | 0.6575 |
| Plunger Travel | 0.6575 in; 16.7 mm |
| Plunger Travel (mm) | 16.70 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | M4 |
| Plunger Centerline Height (Inch) | 1/2 |
| Plunger Centerline Height (mm) | 12.70 |
| Plunger Centerline Height (Decimal Inch) | 0.5000 |
| Plunger Centerline Height | 12.7 mm; 0.5 in |
| Plunger Diameter (mm) | 6.40 |
| Plunger Diameter (Decimal Inch) | 0.2520 |
| Base Style | Flanged |
| Handle Style | Straight |
| Clamp Material | Steel |
| Material | Steel |
| Overall Length (Decimal Inch) | 2.6790 |
| Overall Length (mm) | 68.00 |
| Overall Height (Mm - 5 Decimals) | 40.40 |
| Overall Height (Decimal Inch) | 1.5900 |
| Base Length (mm) | 33.30 |
| Base Length (Decimal Inch) | 1.3110 |
| Base Width (Inch) | 1.0630 |
| Base Width | 27.00 |
| Handle Color | Red |
| Length Distance Between Mount Holes (mm) | 16.00 |
| Length Distance Between Mount Holes (Inch) | 0.6250 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.6260 |
| Width Distance Between Mount Holes (mm) | 15.90 |
| Mounting Hole Diameter (mm) | 4.32 |
| Mounting Hole Diameter (Decimal Inch) | 0.1720 |
| Includes | (2) Nuts; (1) Spindle |
| Holding Capacity (kg) | 45.36 |
| Holding Capacity (N) | 444.82 |
| Handle Movement (Degrees) | 180 |
| Spindle Length (mm) | 19.00 |
| Spindle Length (Decimal Inch) | 0.7480 |
| Number Of Mounting Holes | 3 |
| Finish Coating | Zinc-Plated |
| Holding Capacity (Lb.) | 100.00 |
 | |
| MSC Part # | 12098612 |
| Mfr Part # | CH-301-A |
| Country of OriginCountry of Origin is subject to change | China |
