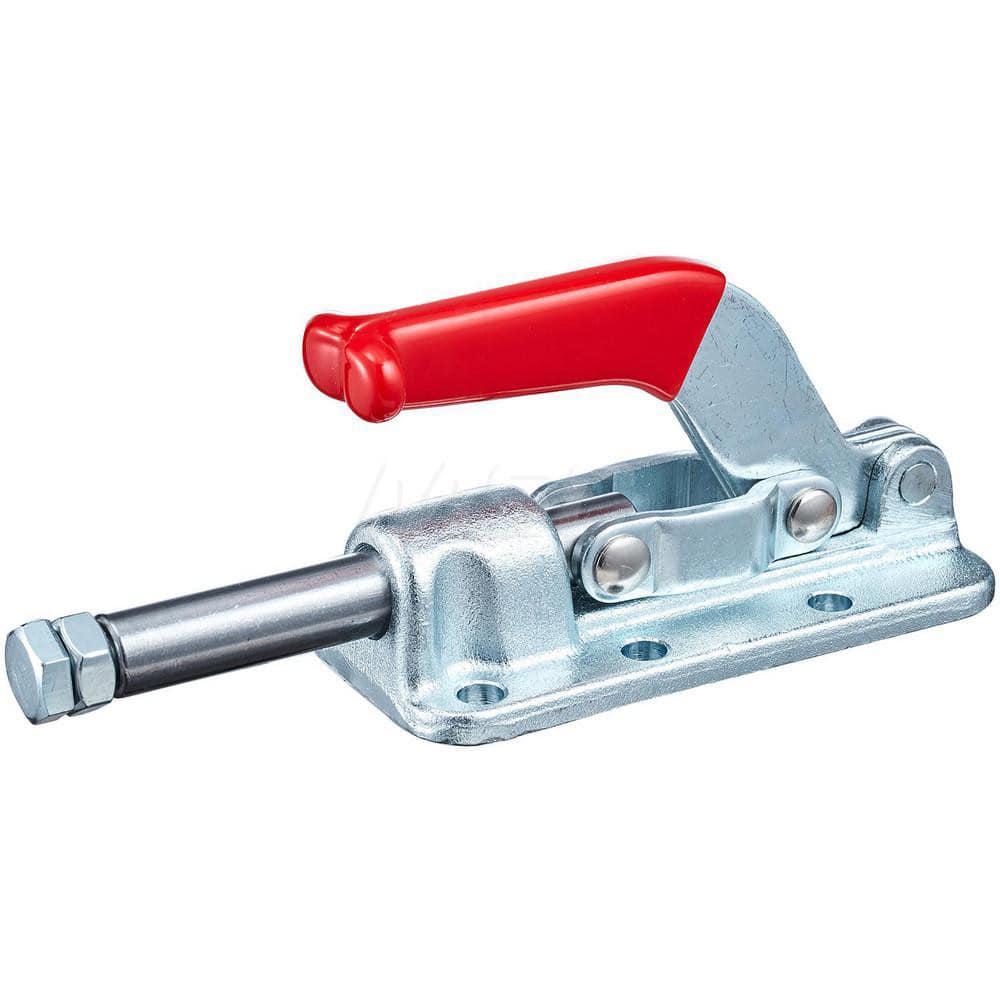

Standard Straight Line Action Clamp: 2,500 lb Load Capacity, 1.9685″ Plunger Travel, Flanged Base, Steel 6 Mounting Hole, 0.63″ Plunger Dia, Straight Handle
Item #: 12099370
Brand: Hertel
Model #: CH-36330
Product Specifications
| Load Capacity (Lb. - 3 Decimals) | 2500.00 |
| Load Capacity (N) | 11120.50 |
| Load Capacity | 1133.96 |
| Load Capacity | 11121 |
| Plunger Travel (Decimal Inch) | 1.9685 |
| Plunger Travel | 50 mm; 1.9685 in |
| Plunger Travel (mm) | 50.00 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 3/8-16 |
| Plunger Centerline Height (mm) | 20.60 |
| Plunger Centerline Height (Decimal Inch) | 0.8110 |
| Plunger Centerline Height | 0.811 in; 20.6 mm |
| Plunger Diameter (mm) | 15.80 |
| Plunger Diameter (Decimal Inch) | 0.6300 |
| Base Style | Flanged |
| Handle Style | Straight |
| Clamp Material | Steel |
| Material | Steel |
| Overall Length (Decimal Inch) | 7.0870 |
| Overall Length (mm) | 180.00 |
| Overall Height (Mm - 5 Decimals) | 75.00 |
| Overall Height (Decimal Inch) | 2.9530 |
| Base Length (Decimal Inch) | 5.0390 |
| Base Width (Inch) | 2.3030 |
| Base Width | 58.50 |
| Handle Color | Red |
| Length Distance Between Mount Holes (mm) | 35.05; 41.15 |
| Length Distance Between Mount Holes (Inch) | 1.6200; 1.3800 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.3800 |
| Width Distance Between Mount Holes (mm) | 41.40 |
| Includes | (2) Nuts; (1) Spindle |
| Holding Capacity (kg) | 1133.96 |
| Holding Capacity (N) | 11120.50 |
| Number Of Mounting Holes | 6 |
| Holding Capacity (Lb.) | 2500.00 |
 | |
| MSC Part # | 12099370 |
| Mfr Part # | CH-36330 |
| Country of OriginCountry of Origin is subject to change | China |
