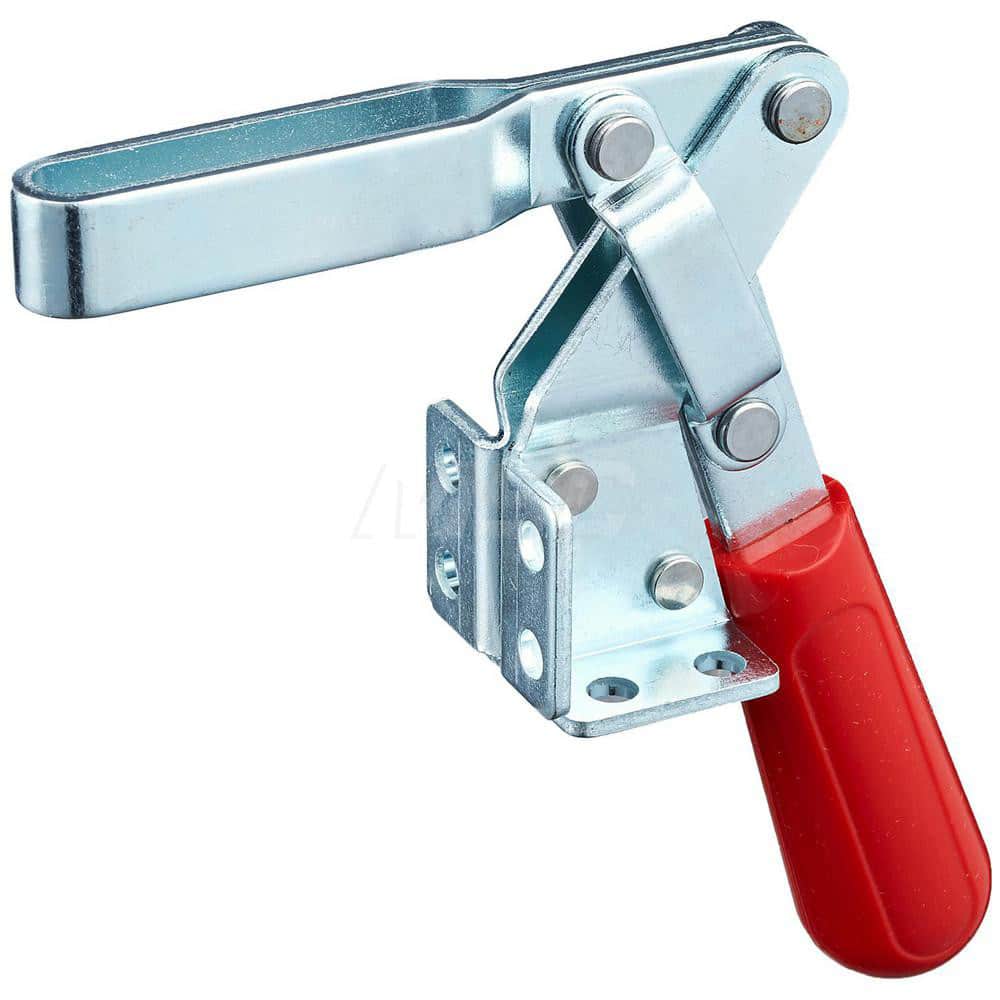

Manual Hold-Down Toggle Clamp: Horizontal, 375 lb Capacity, U-Bar, Flanged Base 60 ° Handle Movement, 185 ° Bar Opening, Steel
Item #: 12099438
Brand: Hertel
Model #: CH-D317
Product Specifications
| Handle Orientation | Horizontal |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (kg) | 170.10 |
| Holding Capacity (N) | 1668.08 |
| Holding Capacity (Lb.) | 375.00 |
| Length Distance Between Mount Holes (mm) | 16.00 |
| Length Distance Between Mount Holes | 0.63 in; 16 mm |
| Length Distance Between Mount Holes (Inch) | 0.63 |
| Width Distance Between Mount Holes (mm) | 25.00 |
| Width Distance Between Mount Holes | 25 mm; 0.98 in |
| Width Distance Between Mount Holes (Decimal Inch) | 0.9800 |
| Height Under Bar (Decimal Inch) | 2.7560 |
| Height Under Bar (mm) | 70.00 |
| Overall Length (mm) | 147.00 |
| Overall Length (Decimal Inch) | 5.7870 |
| Overall Height (Decimal Inch) | 5.7680 |
| Overall Height (Mm - 5 Decimals) | 146.50 |
| Base Length (mm) | 35.10 |
| Base Width (Inch) | 1-1/2 |
| Base Width (Inch) | 1.5000 |
| Base Width | 38.00 |
| Handle Style | Straight |
| Material | Steel |
| Handle Material | Steel |
| Handle Color | Red |
| Mounting Hole Diameter (mm) | 6.60 |
| Mounting Hole Diameter (Decimal Inch) | 0.2600 |
| Bar Opening (Degrees) | 185 |
| Handle Movement (Degrees) | 60 |
| Bar Width (mm) | 15.40 |
| Bar Width (Decimal Inch) | 0.6060 |
| Bar Thickness (mm) | 16.00 |
| Bar Thickness (Decimal Inch) | 0.6300 |
| Front Of Base To Toggle Tip | 2.57 in |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.5790 |
| Front of Base To Tip Of Toggle Bar (mm) | 65.50 |
| Number Of Mounting Holes | 4 |
| Finish Coating | Zinc-Plated |
 | |
| MSC Part # | 12099438 |
| Mfr Part # | CH-D317 |
| Country of OriginCountry of Origin is subject to change | China |
