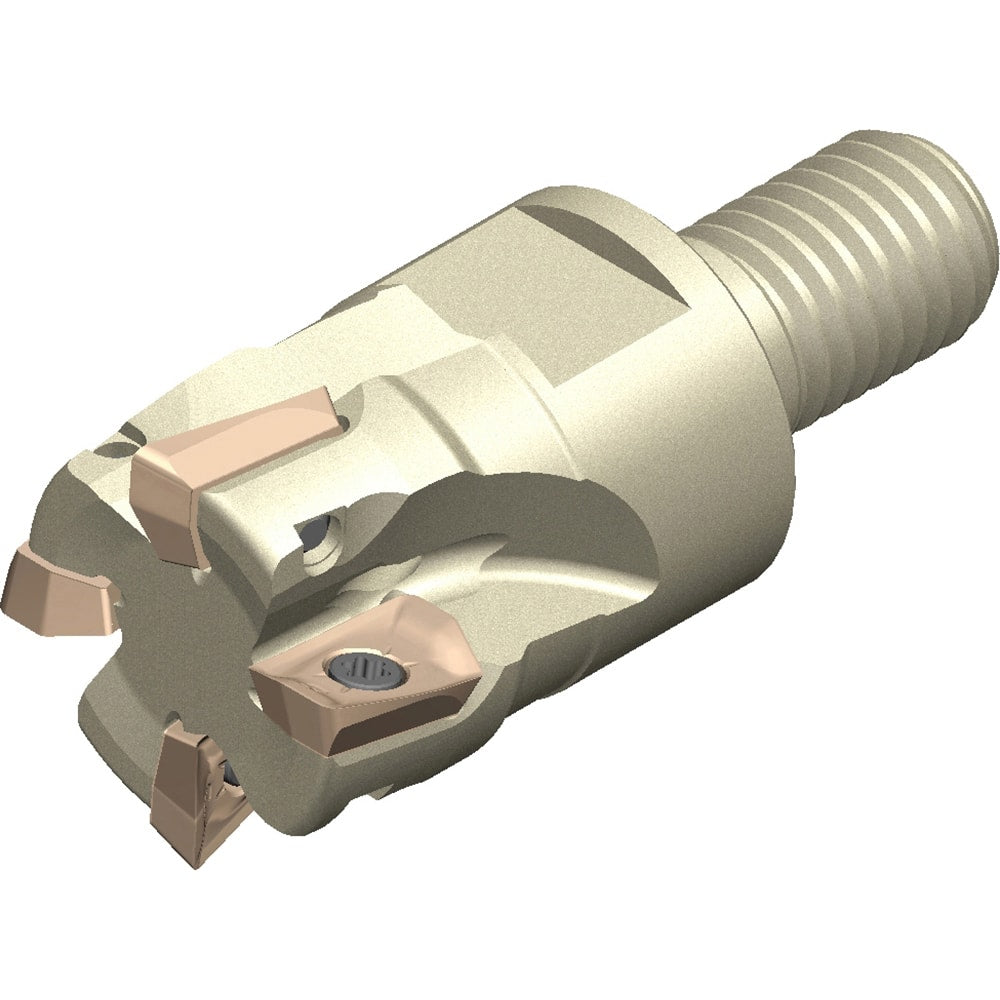

Sumitomo - Indexable Square-Shoulder End Mills; Cutting Diameter (Inch): 0.625 ; Shank Type: Straight ; Shank Diameter (Inch): 0.625 ; Overall Length/Projection (Decimal Inch): 4.2180 ; Lead Angle: 90 ; Series: WEZ
Item #: 12151585
Brand: Sumitomo
Model #: 2900W6Q
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Inch): 0.625 ; Shank Type: Straight ; Shank Diameter (Inch): 0.625 ; Overall Length/Projection (Decimal Inch): 4.2180 ; Lead Angle: 90 ; Series: WEZ
| Cutting Diameter (Inch) | 0.625 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 0.625 |
| Overall Length/Projection (Decimal Inch) | 4.2180 |
| Lead Angle | 90 |
| Series | WEZ |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Inch) | 0.394 |
| Number of Cutter Inserts | 2 |
| Cutter Style | WEZ |
| Insert Compatibility | AOMT11; AOET11 |
| Shank Length (Decimal Inch) | 1.9060 |
| Toolholder Material | Steel |
| Hand of Holder | Right Hand |
