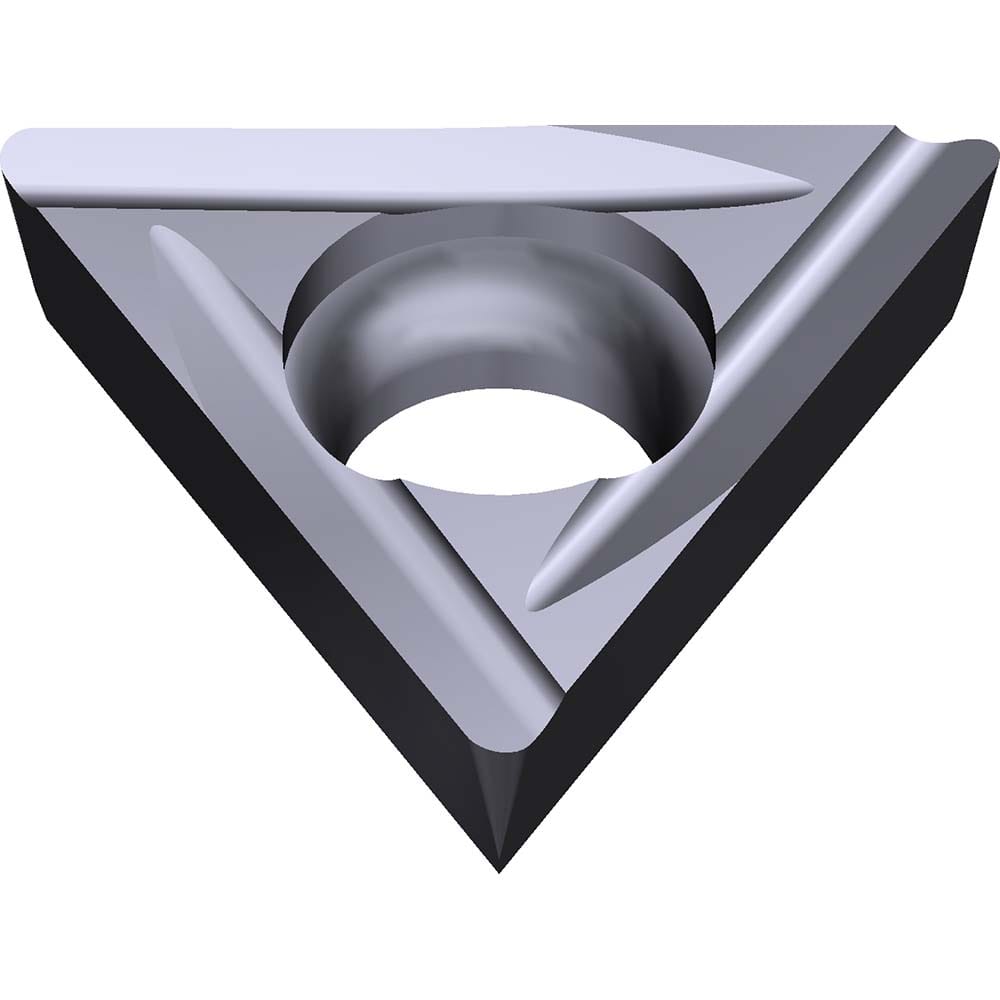

TCGT21.50LFX-AC5015S Carbide Turning Insert Absotech Bronze Finish, 0.4331″ Long, 1/4″ Inscribed Circle, 0.0039″ Corner Radius, 0.0937″ Thick, 60° Included Angle, Series AC5000S
Item #: 12156147
Brand: Sumitomo
Model #: 10T5450
Product Specifications
| Insert Style | TCGT |
| Insert Shape Code | T |
| Insert Size Code | 21.5 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5015S |
| Hole Diameter (Decimal Inch) | 2.8000 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | AC5000S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4331 |
| Primary Workpiece Material | Non-Ferrous Metal; Superalloy |
| Primary Workpiece Material Code | S; N |
| Secondary Workpiece Material | Stainless Steel |
| Ansi Code | TCGT21.50LFX |
| Iso Code | TCGT110201L-FX |
| Standards | ISO 13399; ANSI |
| Manufacturers Catalog Number | TCGT21.50LFX-AC5015S |
| Chip Breaker | FX |
| Coating/Finish | Absotech Bronze |
