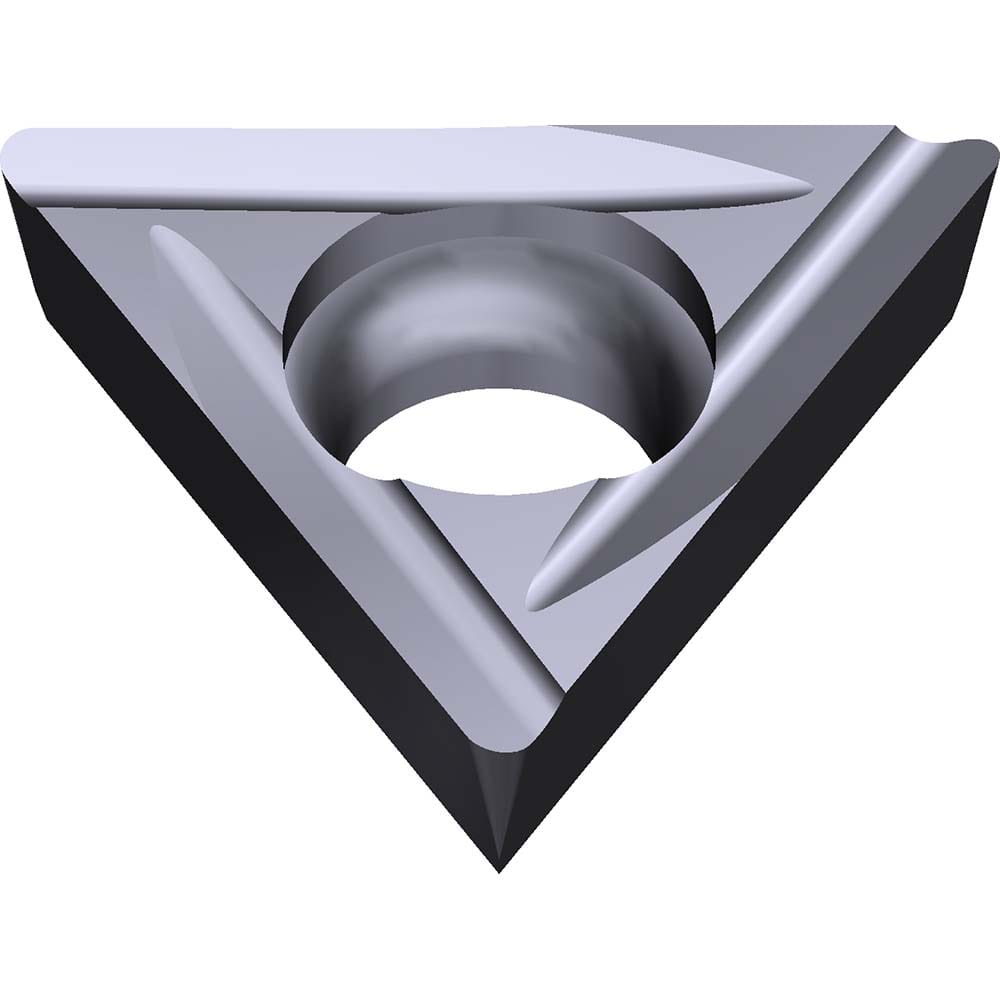

TCGT1.81.50.5LFX Carbide Turning Insert Absotech Bronze Finish, 0.378″ Long, 0.2189″ Inscribed Circle, 0.0079″ Corner Radius, 0.0937″ Thick, 60° Included Angle, Series AC5000S
Item #: 12156204
Brand: Sumitomo
Model #: 10T6448
Product Specifications
| Insert Style | TCGT |
| Insert Shape Code | T |
| Insert Size Code | 1.81.5 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5025S |
| Hole Diameter (Decimal Inch) | 2.5000 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | AC5000S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3780 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel |
| Ansi Code | TCGT1.81.50.5LFX |
| Iso Code | TCGT090202L-FX |
| Standards | ISO 13399; ANSI |
| Manufacturers Catalog Number | TCGT1.81.50.5LFX-AC5025S |
| Chip Breaker | FX |
| Coating/Finish | Absotech Bronze |
