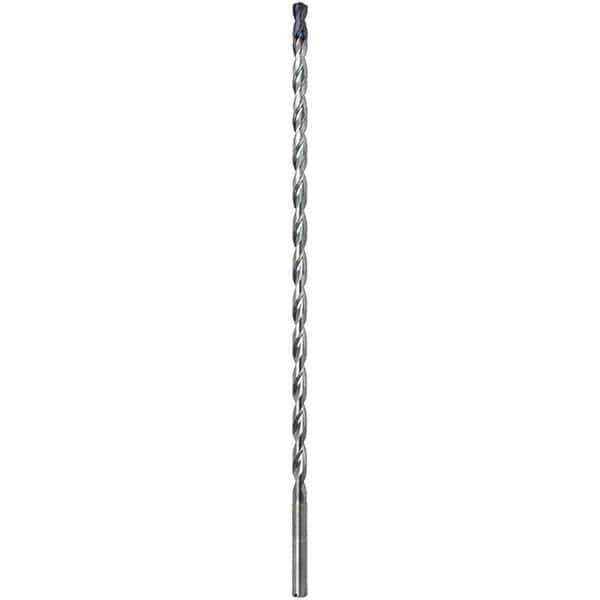

Extra Length Drill Bit: 0.1299″ Dia, 135 °, Solid Carbide TiAlN Finish, Parabolic Flute, Straight-Cylindrical Shank, Series 6512
Item #: 12190450
Brand: Guhring
Model #: 9065120033000
Product Specifications
| Drill Bit Size (mm) | 3.30 |
| Overall Length (mm) | 141.00 |
| Flute Length (mm) | 101.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Parabolic |
| Series | 6512 |
| Point Type | RT100 T |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | h7 |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Aluminum; Titanium Alloy |
| Secondary Workpiece Material Code | S; H; N |
| Standards | California PROP 65 |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.1299 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (mm) | 36.00 |
| Flute By Diameter Ratio | 25xD |
| Maximum Drilling Depth (mm) | 96.05 |
| Material Grade | DK460UF |
