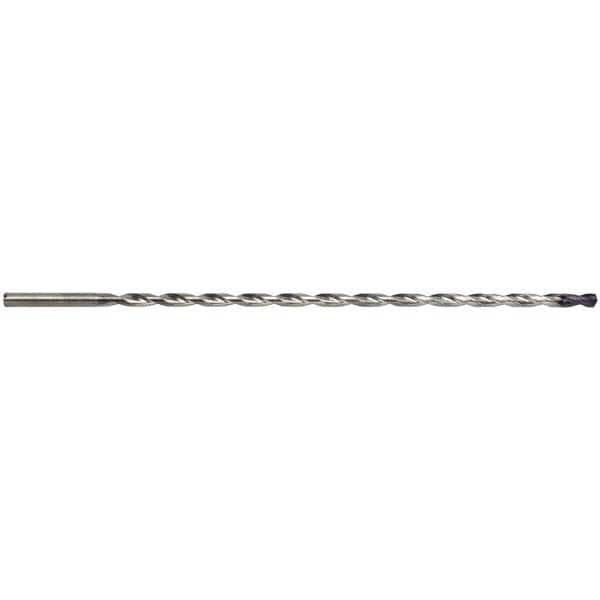

Extra Length Drill Bit: 0.2677″ Dia, 135 °, Solid Carbide TiAlN Finish, Parabolic Flute, Oversized Shank, Series 6509
Item #: 12191581
Brand: Guhring
Model #: 9065090068000
Product Specifications
| Drill Bit Size (mm) | 6.80 |
| Overall Length (mm) | 167.00 |
| Flute Length (mm) | 127.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 135 |
| Shank Type | Oversized |
| Coolant Through | Yes |
| Flute Type | Parabolic |
| Series | 6509 |
| Point Type | Double Margin |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | h7 |
| Number Of Flutes | 2 |
| Web Thinning | RT100 T |
| Secondary Workpiece Material | Aluminum; Stainless Steel; Steel; Titanium Alloy |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.2677 |
| Shank Diameter (mm) | 8.00 |
| Shank Length (mm) | 36.00 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (mm) | 116.80 |
| Material Grade | DK460UF |
