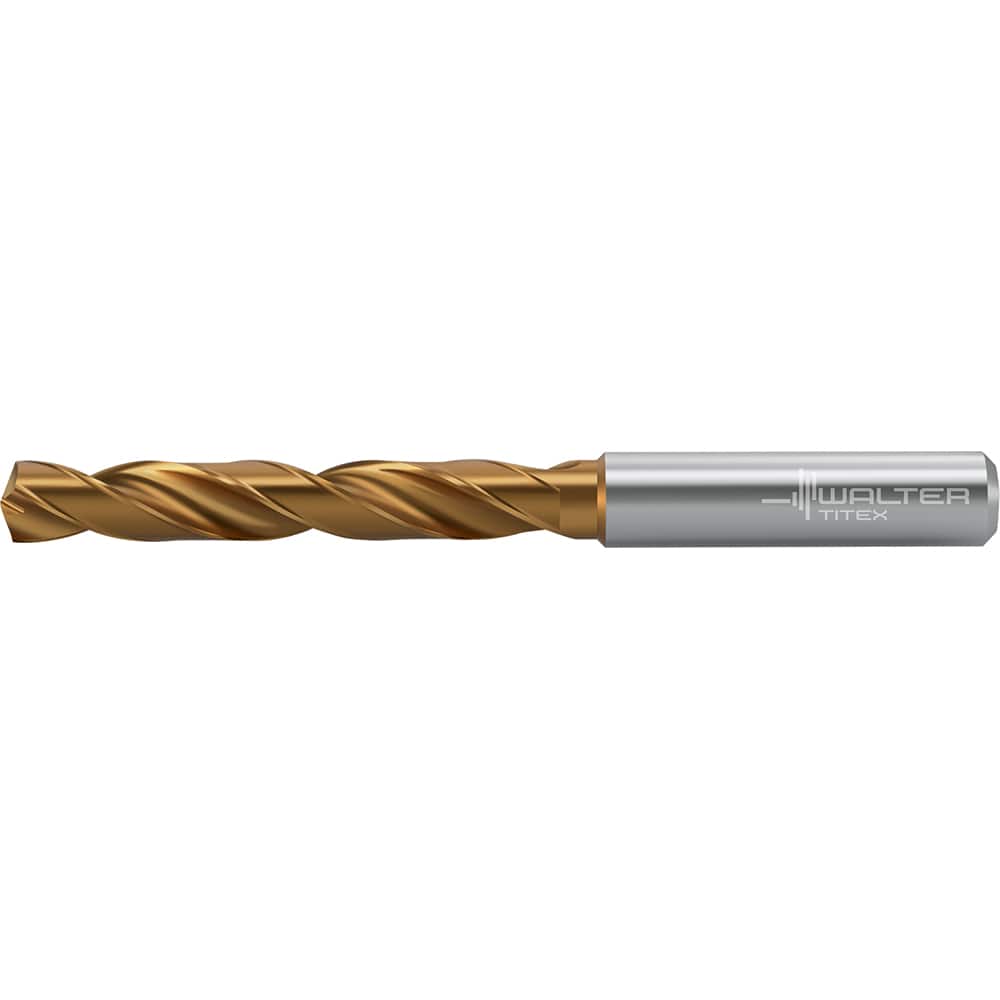

Jobber Length Drill Bit: 0.4567″ Dia, 140 °, Solid Carbide TiSiAlCrN, AlTiN Finish, 4.646″ OAL, Right Hand Cut, Whistle Notch Shank, Series DC160-05-A0
Item #: 12240321
Brand: Walter-Titex
Model #: 7378630
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4567 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiSiAlCrN/AlTiN |
| Drill Point Angle (Degrees) | 140 |
| Coolant Through | No |
| Shank Type | Whistle Notch |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Overall Length (Decimal Inch) | 4.6460 |
| Flute Length (Decimal Inch) | 2.7950 |
| Series | DC160-05-A0 |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 2.2050 |
| Shank Length (Decimal Inch) | 1.7720 |
| Drill Point Length (Decimal Inch) | 0.0830 |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; ANSI |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Material Grade | WJ30ET |
