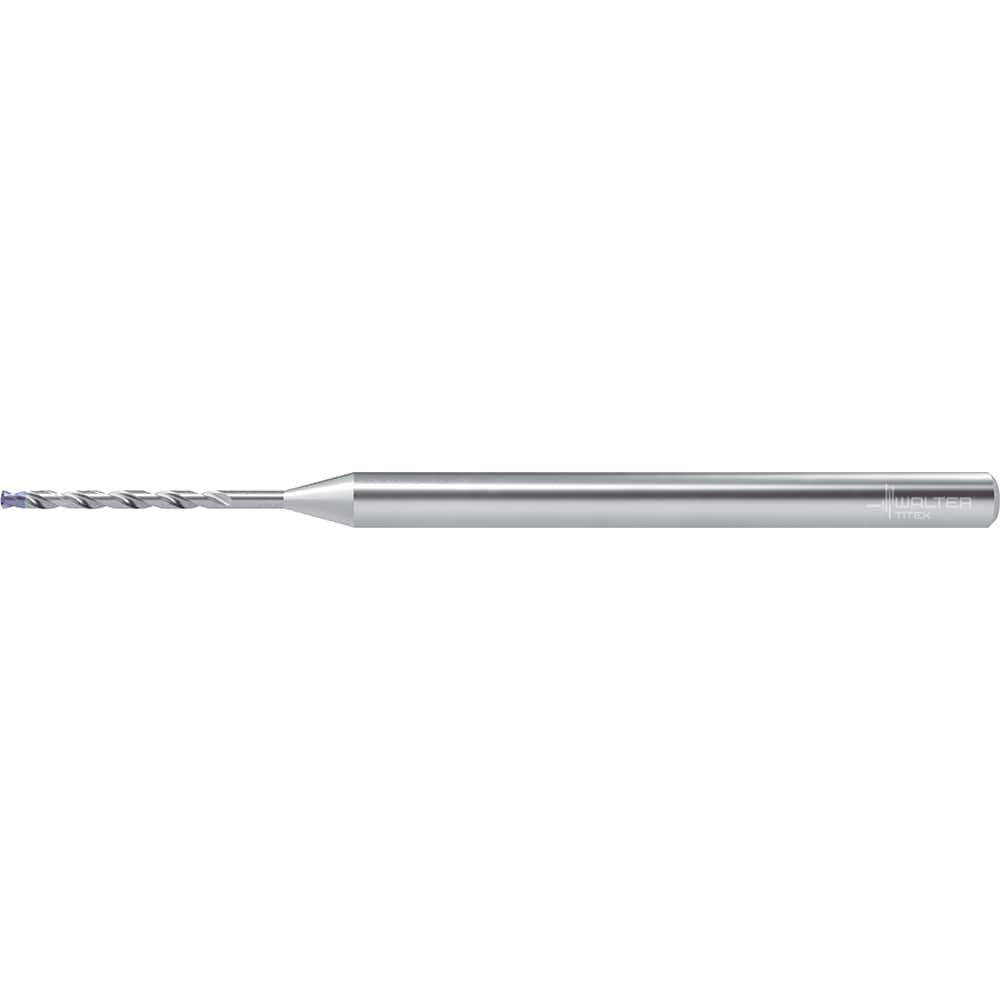

Walter-Titex - 0.0591", 140° Point, Carbide Micro Drill Bit
Item #: 12242608
Brand: Walter-Titex
Model #: 7577885
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0591 |
| Shank Diameter (mm) | 3 |
| Shank Diameter (Inch) | 0.118 |
| Drill Point Angle | 140 |
| Drill Bit Material | Carbide |
| Drill Bit Finish/Coating | AlCrN |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.244 |
| Overall Length (Inch) | 2.244 |
| Flute Length (mm) | 17.00 |
| Flute Length (Decimal Inch) | 0.669 |
| Flute Length (Inch) | 0.669 |
| Through Coolant | Yes |
| Maximum Drilling Depth (mm) | 14.00 |
| Shank Length (mm) | 34.000 |
| Shank Type | Straight |
| Series/List | DB133-08-A1 |
