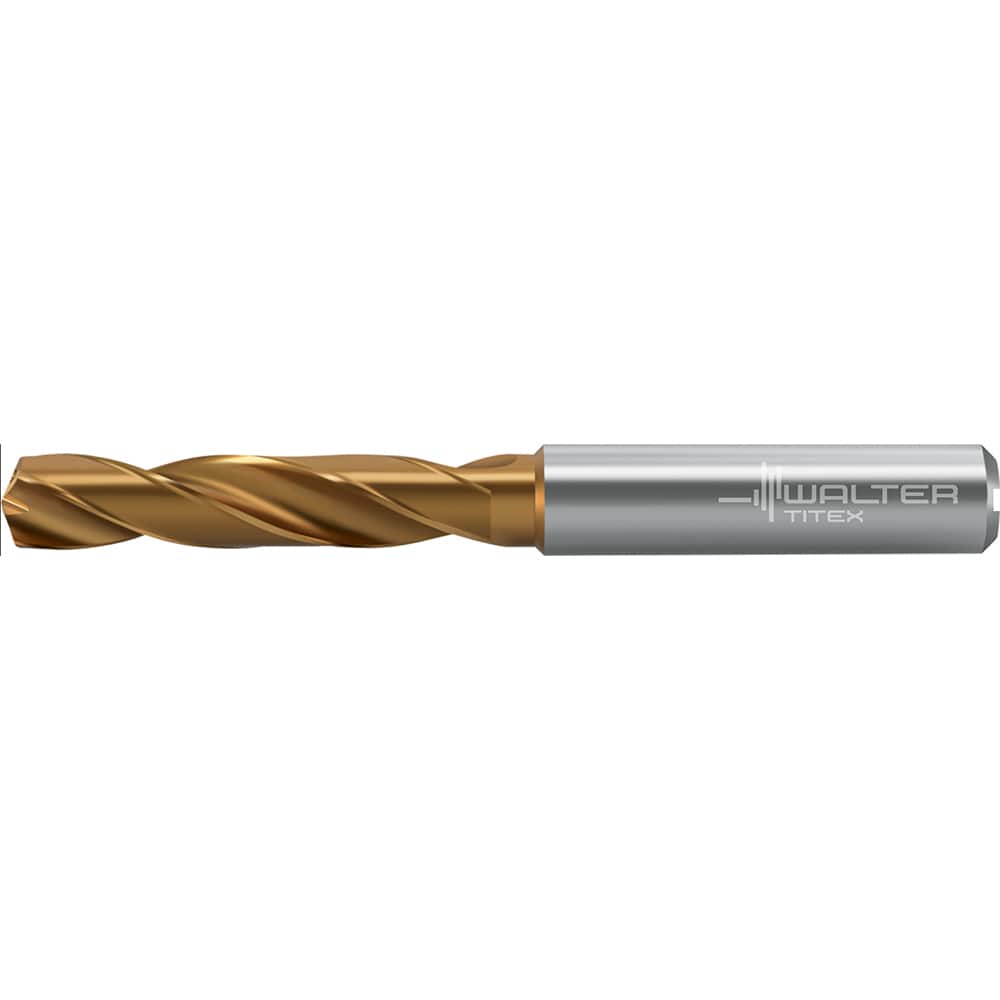

Walter-Titex - Screw Machine Drill Bit -
Item #: 12243960
Brand: Walter-Titex
Model #: 7378170
Product Specifications
Screw Machine Drill Bit -
| Drill Bit Size (Decimal Inch) | 0.2913 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiSiAlCrN/AlTiN |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Coolant Through |
| Flute Length (Decimal Inch) | 1.6140 |
| Overall Length (Decimal Inch) | 3.11000 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Maximum Drilling Depth (Decimal Inch) | 1.1420 |
| Shank Length (Decimal Inch) | 1.4170 |
| Number of Flutes | 2 |
| Drill Point Length (Decimal Inch) | 0.0530 |
| Through Coolant | Yes |
| Material Grade | WJ30ET |
| Series/List | DC160-03-A1 |
