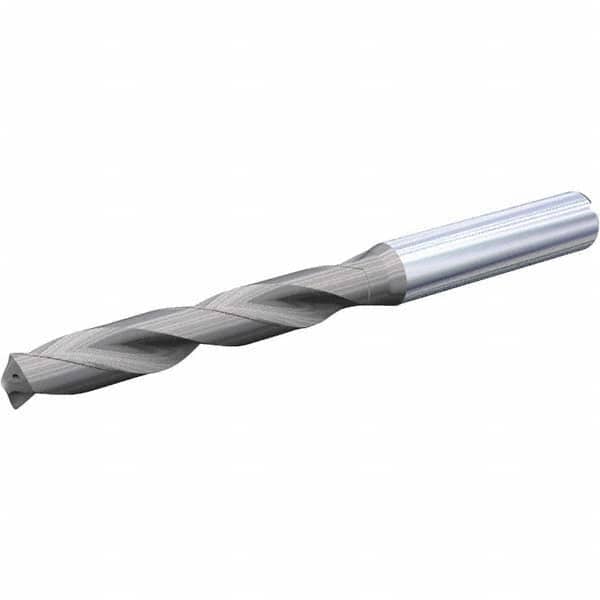

Screw Machine Length Drill Bit: 0.5625″ Dia, 140 °, Solid Carbide AlTiN & TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series HPX
Item #: 12253043
Brand: Kennametal
Model #: 6781704
Product Specifications
| Drill Bit Size (Inch) | 9/16 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN; TiN |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Drill Bit Size (Decimal Inch) | 0.5625 |
| Drill Tip Finish/Coating | AlTiN; TiN |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5276 |
| Shank Diameter (mm) | 16.00 |
| Series | HPX |
| Maximum Drilling Depth (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.00 |
| Drill Point Length (mm) | 2.98 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 65.00 |
| Drill Bit Grade | KCP15B |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Material Grade | KCP15B |
