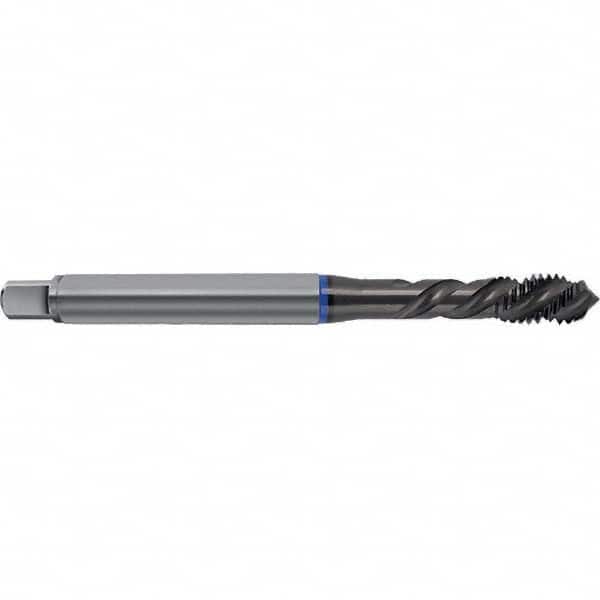

Spiral Flute Tap: M16 x 2.00, Metric, 4 Flute, Semi-Bottoming, 6HX Class of Fit, TiAlN Finish Left Hand Flute, Left Hand Thread, D9 & D10, Series 4629
Item #: 12262572
Brand: Guhring
Model #: 9046290160000
Product Specifications
| Coating/Finish | TiAlN |
| Thread Size (mm) | M16 x 2.00 |
| Thread Standard | Metric |
| Thread Limit | D10; D9 |
| Thread Pitch (mm) | 2.00 |
| Thread Direction | Left Hand |
| Thread Length (Mm) ( - 3 Decimals) | 20.00 |
| Overall Length (mm) | 110.00 |
| Chamfer | Semi-Bottoming |
| Flute Direction | Left Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (mm) | 12.00 |
| Neck Length (mm) | 54.00 |
| Square Size (mm) | 9.00 |
| Flute Style | Spiral |
| Material Application | Aluminum; Nickel-Titanium Alloy; Stainless Steel; Cast Iron; Steel |
| Series | 4629 |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Class Of Fit | 6HX |
