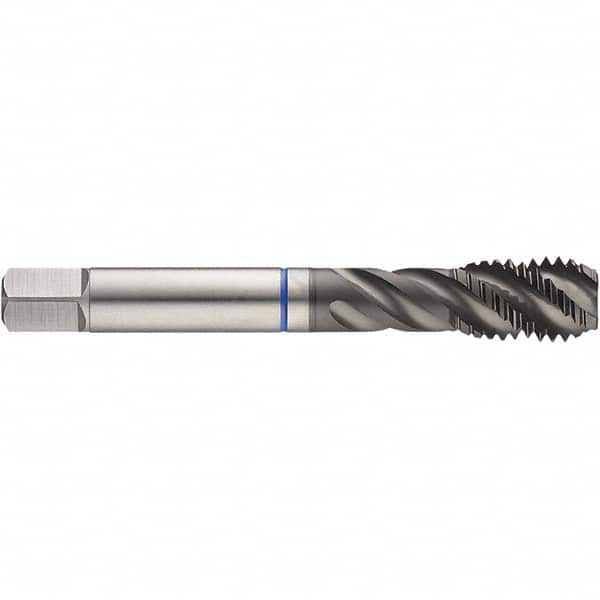

Spiral Flute Tap: #6-32, UNC, 3 Flute, Bottoming, 2BX Class of Fit, Slidur Finish Right Hand Flute, Right Hand Thread, H4 & H5, Series 4654
Item #: 12263661
Brand: Guhring
Model #: 9046540035050
Product Specifications
| Coating/Finish | Slidur |
| Thread Size (Inch - 0 Decimals) | #6-32 |
| Thread Standard | UNC |
| Thread Limit | H4; H5 |
| Thread Direction | Right Hand |
| Overall Length (mm) | 56.00 |
| Chamfer | Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Neck Length (Decimal Inch) | 0.7090 |
| Tapping Depth (Decimal Inch) | 0.7090 |
| Square Size (Decimal Inch) | 0.1100 |
| Flute Style | Spiral |
| Material Application | Aluminum; Nickel-Titanium Alloy; Stainless Steel; Cast Iron; Steel |
| Series | 4654 |
| Coolant Through | No |
| Teeth per Inch | 32 |
| Number Of Flutes | 3 |
| Class Of Fit | 2BX |
