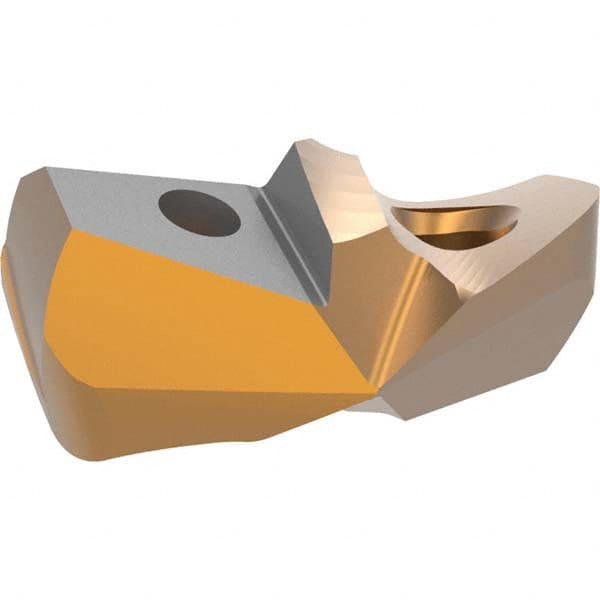

Spade Drill Insert: 1-7/32″ Dia, Series 29, Solid Carbide AM300 Finish, Series GEN3SYS XT
Item #: 12335683
Brand: Allied Machine and Engineering
Model #: 7C229P-0107CI
Product Specifications
| Diameter (mm) | 30.96 |
| Diameter (Inch) | 1-7/32 |
| Series Code/Seat Size | 29 |
| Insert Material | Solid Carbide |
| Included Angle Degree | 140 |
| Manufacturer Grade | K20 |
| Spade Drill Insert Diameter Range (mm) | 30.00 to 40.00 |
| Series | GEN3SYS XT |
| Material Grade | C2 |
| Coating/Finish | AM300 |
