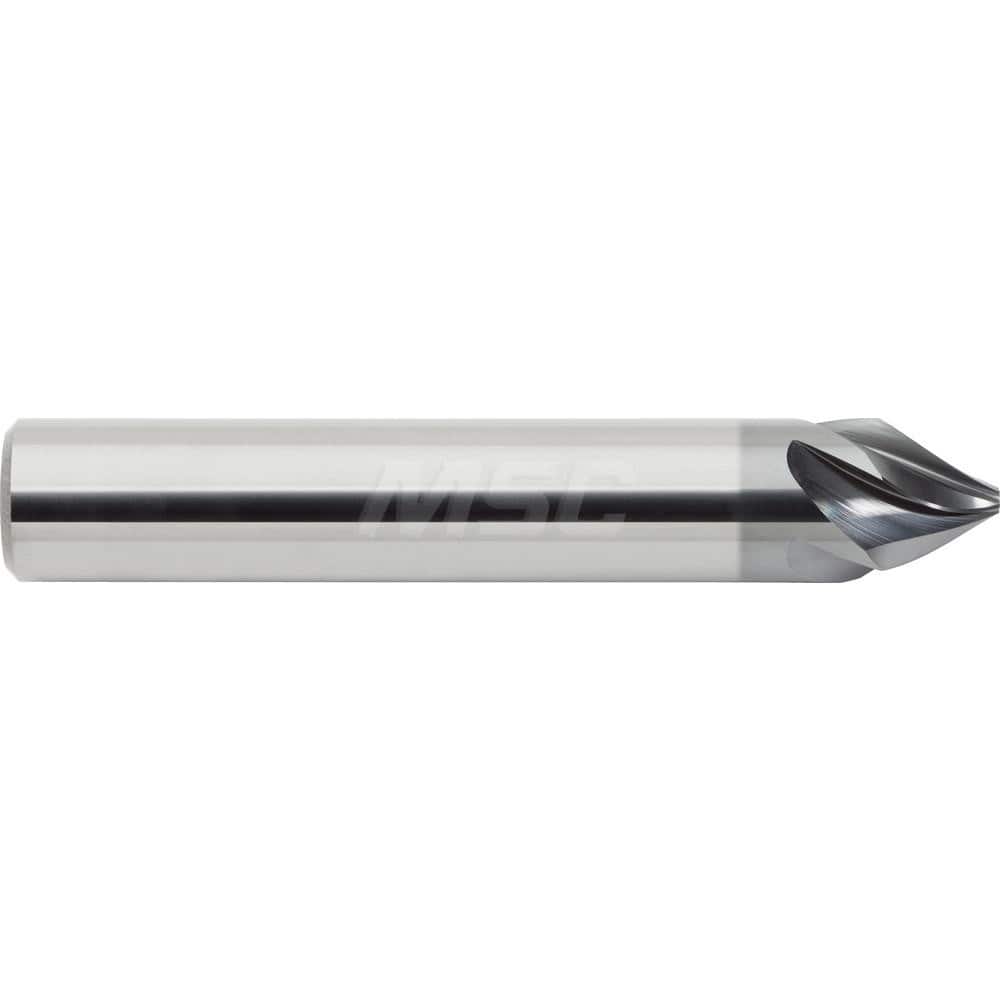

M.A. Ford - Chamfer Mills; Cutter Head Diameter (Inch): 1/4 ; Included Angle A: 60 ; Chamfer Mill Material: Solid Carbide ; Chamfer Mill Finish/Coating: AlCrN ; Overall Length (Inch): 2-1/2 ; Shank Diameter (Inch): 1/4
Item #: 12442695
Brand: M.A. Ford
Model #: 5HC025001B
Product Specifications
Chamfer Mills; Cutter Head Diameter (Inch): 1/4 ; Included Angle A: 60 ; Chamfer Mill Material: Solid Carbide ; Chamfer Mill Finish/Coating: AlCrN ; Overall Length (Inch): 2-1/2 ; Shank Diameter (Inch): 1/4
| Cutter Head Diameter (Inch) | 1/4 |
| Included Angle A | 60 |
| Chamfer Mill Material | Solid Carbide |
| Chamfer Mill Finish/Coating | AlCrN |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 1/4 |
| Number of Flutes | 5 |
| End Type | Single |
| Length of Cut (Decimal Inch) | 0.1650 |
| Cutting Direction | Right Hand |
| Cutter Head Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Decimal Inch) | 1/4 |
| Overall Length (Decimal Inch) | 2-1/2 |
| Series/List | 5HC |
