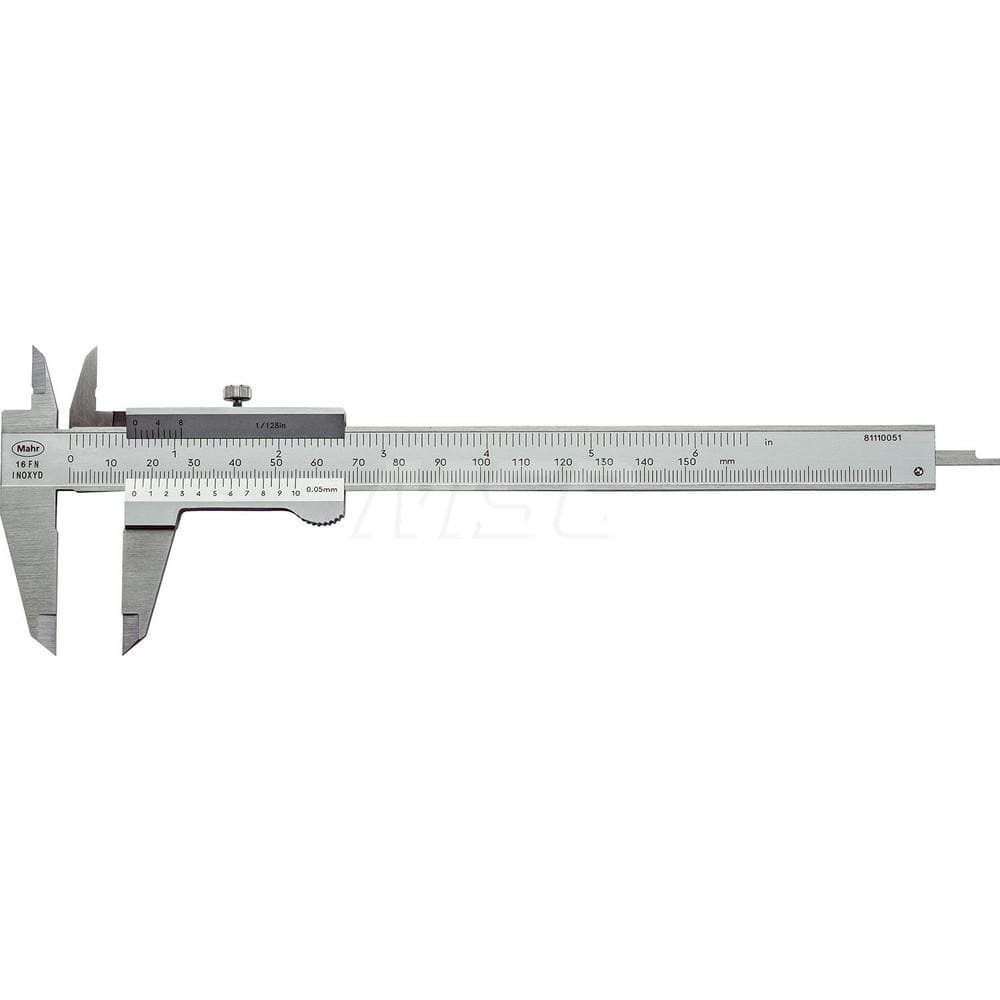

Mahr - Vernier Calipers; Minimum Measurement (mm): 0 ; Minimum Measurement (Decimal Inch): 0 ; Maximum Measurement (Decimal Inch): 8 ; Maximum Measurement (mm): 200 ; Graduation (mm): 0.05 ; Jaw Depth (mm): 50.00
Item #: 12488730
Brand: Mahr
Model #: 4100421
Product Specifications
Vernier Calipers; Minimum Measurement (mm): 0 ; Minimum Measurement (Decimal Inch): 0 ; Maximum Measurement (Decimal Inch): 8 ; Maximum Measurement (mm): 200 ; Graduation (mm): 0.05 ; Jaw Depth (mm): 50.00
| Minimum Measurement (mm) | 0 |
| Minimum Measurement (Decimal Inch) | 0 |
| Maximum Measurement (Decimal Inch) | 8 |
| Maximum Measurement (mm) | 200 |
| Graduation (mm) | 0.05 |
| Jaw Depth (mm) | 50.00 |
| Material | Stainless Steel |
| Accuracy (mm) | 0.05 |
| Accuracy (Decimal Inch) | 0.0020 |
| Calibrated | No |
| Traceability Certification Included | No |
| Features | Vernier and Scale Have a Satin Chrome Finish for Glare Free Reading; Locking Screw Above; Measuring Surfaces Made of Steel; Measuring Blade for Inside Measurements; Slide and Beam Made of Hardened Stainless Steel; Step Measuring Function; Raised Guideway |
| Fine Adjustment | No |
| Includes Inside Diameter Jaws | Yes |
| Includes Depth Measurement Rod | Yes |
| Set Screws | Single |
| Jaw Material | Stainless Steel |
| Finish/Coating | Satin Chrome |
| Includes | Thread Table; Case |
| Trade Name | MarCal |
