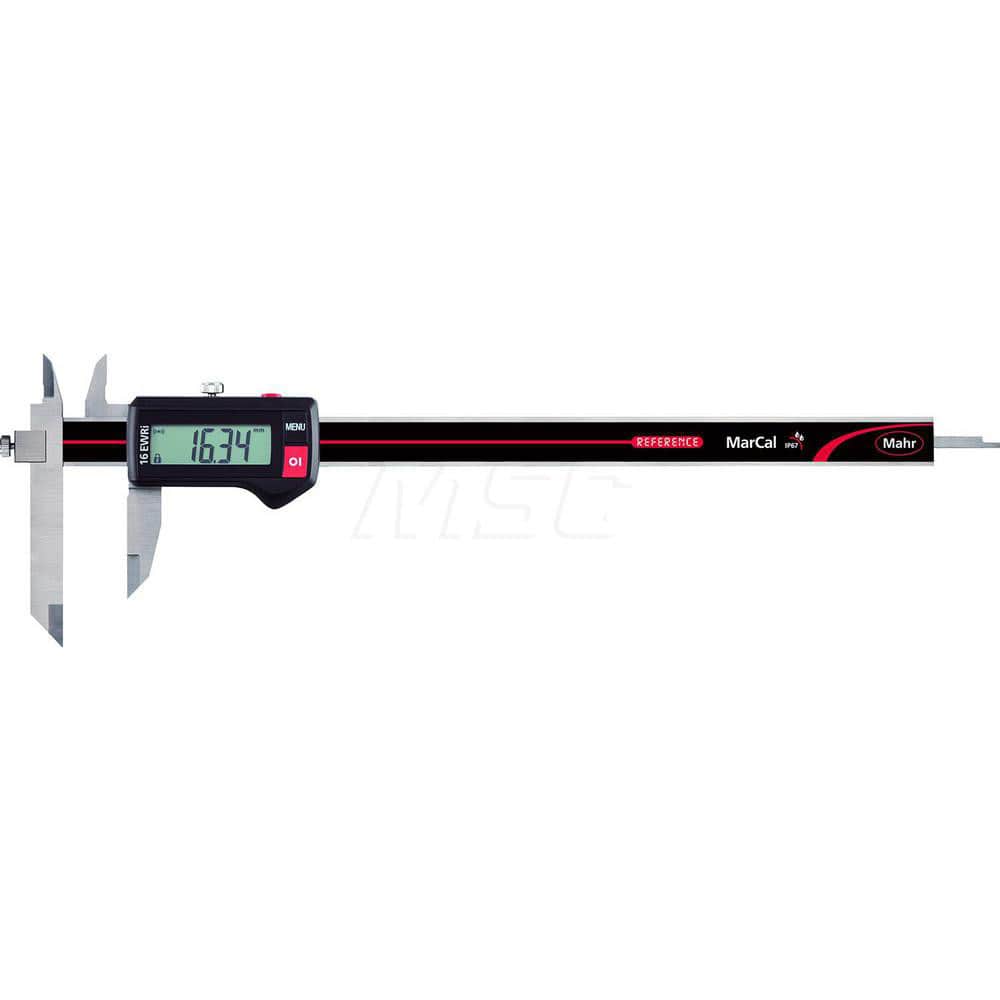

Mahr - Electronic Calipers; Minimum Measurement (mm): 0.00 ; Minimum Measurement (Decimal Inch): 0.0000 ; Maximum Measurement (Decimal Inch): 8 ; Maximum Measurement (mm): 200.00 ; Accuracy Plus/Minus (Decimal Inch): 0.0015 ; Accuracy Plus/Minus (mm): 0.
Item #: 12491510
Brand: Mahr
Model #: 4103383KAL
Product Specifications
Electronic Calipers; Minimum Measurement (mm): 0.00 ; Minimum Measurement (Decimal Inch): 0.0000 ; Maximum Measurement (Decimal Inch): 8 ; Maximum Measurement (mm): 200.00 ; Accuracy Plus/Minus (Decimal Inch): 0.0015 ; Accuracy Plus/Minus (mm): 0.0400
| Minimum Measurement (mm) | 0.00 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Decimal Inch) | 8 |
| Maximum Measurement (mm) | 200.00 |
| Accuracy Plus/Minus (Decimal Inch) | 0.0015 |
| Accuracy Plus/Minus (mm) | 0.0400 |
| Resolution (Decimal Inch) | 0.0005 |
| Resolution (mm) | 0.0100 |
| IP Rating | IP67 |
| Data Output | Integrated Wireless |
| Calibrated | Yes |
| Jaw Length (mm) | 65.00 |
| Includes Inside Diameter Jaws | Yes |
| Jaw Style | Inside |
| Application | For Measuring Stepped Workpieces; Special Applications |
| Material | Stainless Steel |
| Jaw Material | Stainless Steel |
| Power Source | Battery |
| Battery Type | 3 Volt Lithium CR2032 |
| Minimum Inside Diameter Measurement (Inch) | 0.0000 |
| Minimum Inside Diameter Measurement (mm) | 0.00 |
| Minimum Inside Diameter Measurement (Decimal Inch) | 0.0000 |
| Additional Information | Model Number: 16 EWRi-VS; Length: 278 mm; Height: 105; Scale Width: 16 mm; Nib Height: 14 mm; Upper Jaw Size: 18 mm; Height of Digits: 11 mm; Battery life: Approx. 3 yr; Function: ON/OFF, AUTO-ON/OFF, mm/inch, LOCK Function (Key Lock), RESET (Set Display |
| Maximum Inside Diameter Measurement (Inch) | 8 |
| Maximum Inside Diameter Measurement (mm) | 200.00 |
| Trade Name | MarCal |
| Nib Size (mm) | 10.00 |
| Includes Depth Measurement Rod | Yes |
| Includes | Battery; Case; Instruction Manual |
