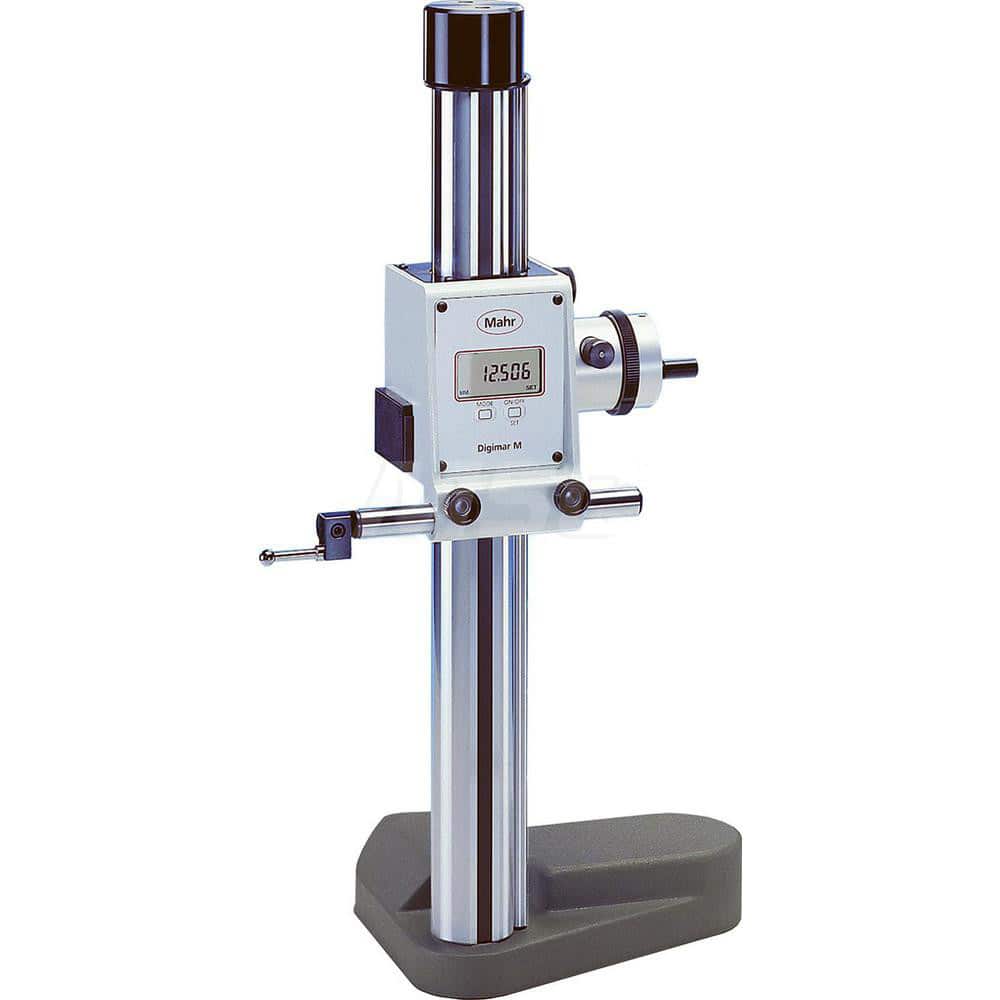

Mahr - Electronic Height Gages; Maximum Measurement (Decimal Inch): 24.4 ; Maximum Measurement (mm): 620 ; Resolution (microns): 0.001; 0.01 (mm); Resolution (Decimal Inch): 0.00005; 0.0005 ; Resolution (microns): 0.001; 0.01 ; Data Output: USB; Opto RS-
Item #: 12491924
Brand: Mahr
Model #: 4426542KAL
Product Specifications
Electronic Height Gages; Maximum Measurement (Decimal Inch): 24.4 ; Maximum Measurement (mm): 620 ; Resolution (microns): 0.001; 0.01 (mm); Resolution (Decimal Inch): 0.00005; 0.0005 ; Resolution (microns): 0.001; 0.01 ; Data Output: USB; Opto RS-232C; Wireless
| Maximum Measurement (Decimal Inch) | 24.4 |
| Maximum Measurement (mm) | 620 |
| Resolution (microns) | 0.001; 0.01 |
| Resolution (Decimal Inch) | 0.00005; 0.0005 |
| Data Output | USB; Opto RS-232C; Wireless |
| Display Type | Digital |
| Accuracy (Inch) | 0.0012 |
| Accuracy (Decimal Inch) | 0.0012 |
| Calibrated | Yes |
| Traceability Certification Included | None |
| Minimum Measurement (mm) | 0 |
| Minimum Measurement (Decimal Inch) | 0 |
| Perpendicularity (micro m) | 30.00 |
| Trade Name | Digimar |
