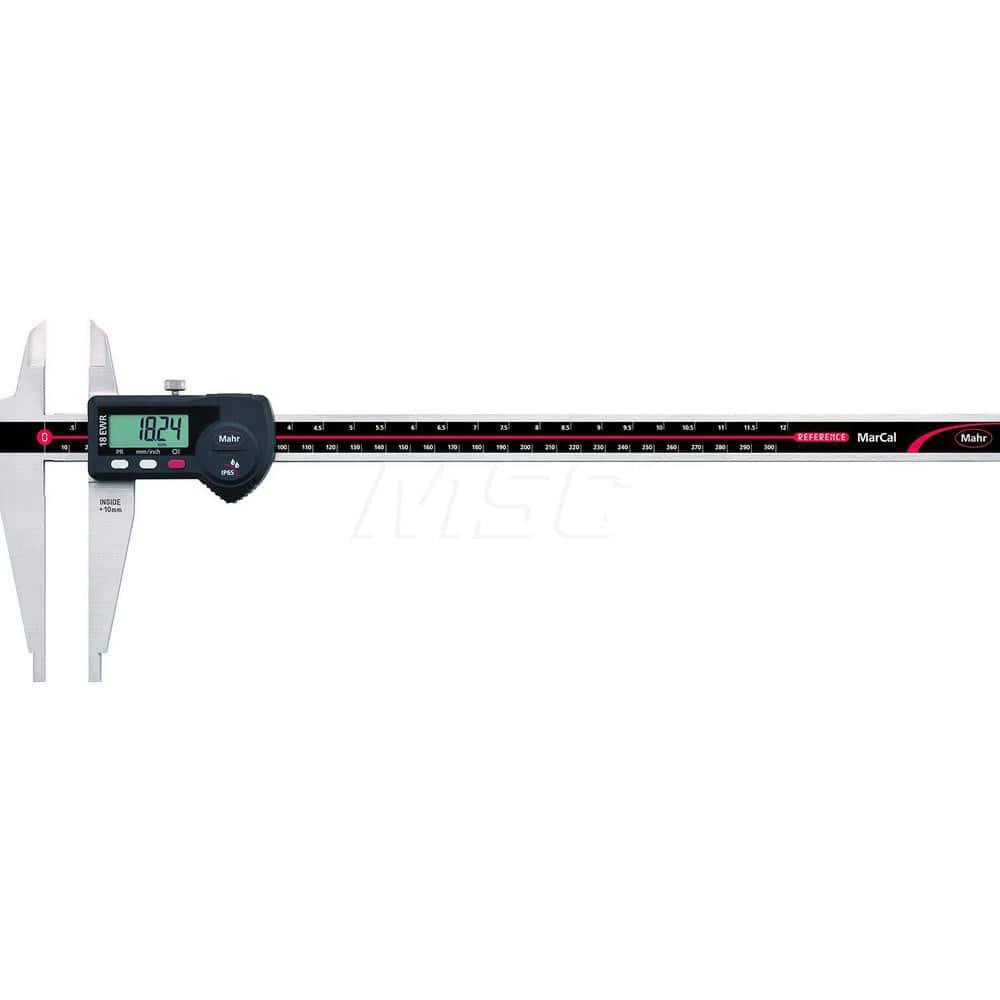

Mahr - Electronic Calipers; Minimum Measurement (mm): 0.00 ; Minimum Measurement (Decimal Inch): 0.0000 ; Maximum Measurement (Decimal Inch): 12 ; Maximum Measurement (mm): 300.00 ; Accuracy Plus/Minus (Decimal Inch): 0.0010 ; Accuracy Plus/Minus (mm): 0
Item #: 12493094
Brand: Mahr
Model #: 4112704KAL
Product Specifications
Electronic Calipers; Minimum Measurement (mm): 0.00 ; Minimum Measurement (Decimal Inch): 0.0000 ; Maximum Measurement (Decimal Inch): 12 ; Maximum Measurement (mm): 300.00 ; Accuracy Plus/Minus (Decimal Inch): 0.0010 ; Accuracy Plus/Minus (mm): 0.0300
| Minimum Measurement (mm) | 0.00 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Decimal Inch) | 12 |
| Maximum Measurement (mm) | 300.00 |
| Accuracy Plus/Minus (Decimal Inch) | 0.0010 |
| Accuracy Plus/Minus (mm) | 0.0300 |
| Resolution (Decimal Inch) | 0.0005 |
| Resolution (mm) | 0.0100 |
| IP Rating | IP65 |
| Data Output | Digimatic; Opto RS-232C; USB; Wireless |
| Calibrated | Yes |
| Jaw Length (mm) | 90.00 |
| Includes Inside Diameter Jaws | Yes |
| Jaw Style | Inside/Outside |
| Material | Stainless Steel |
| Jaw Material | Stainless Steel |
| Power Source | Battery |
| Battery Type | 3 Volt Lithium CR2032 |
| Minimum Inside Diameter Measurement (Inch) | 0.0000 |
| Minimum Inside Diameter Measurement (mm) | 0.00 |
| Minimum Inside Diameter Measurement (Decimal Inch) | 0.0000 |
| Additional Information | Model Number: 18 EWR; Length: 410 mm; Scale Width: 20 mm; Nib Height: 10 mm; Upper Jaw Size: 40 mm; Height of Digits: 12.5 mm; Battery life: Approx. 3 yr; Function: AUTO-ON/OFF, DATA (Data Transmission Via Connection Cable), ON/OFF, PRESET (For Entering a |
| Maximum Inside Diameter Measurement (Inch) | 12 |
| Maximum Inside Diameter Measurement (mm) | 300.00 |
| Trade Name | MarCal |
| Nib Size (mm) | 10.00 |
| Includes | Battery; Case; Instruction Manual |
