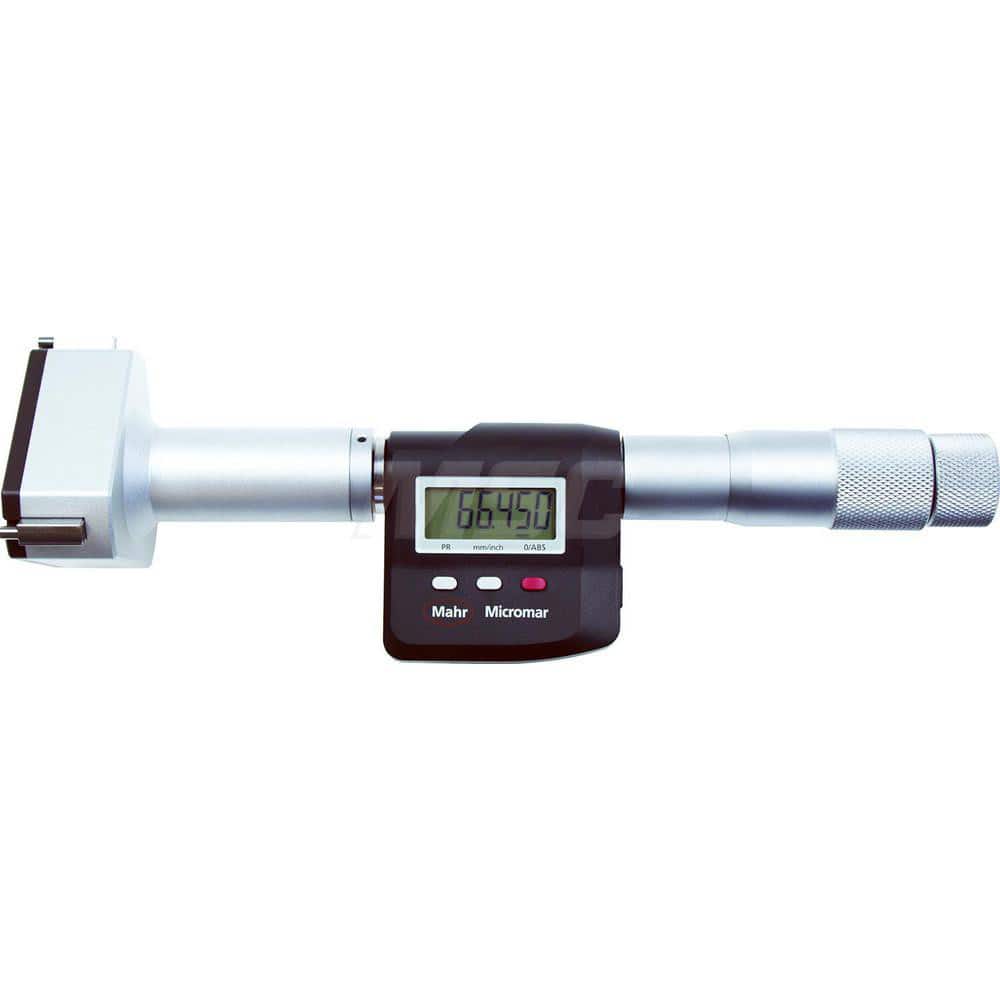

Mahr - Electronic Inside Micrometers; Minimum Measurement (Inch): 2.7500 ; Minimum Measurement (mm): 70 ; Minimum Measurement (Decimal Inch): 2.7500 ; Maximum Measurement (Inch): 3.3500 ; Maximum Measurement (Decimal Inch): 3.3500 ; Maximum Measurement (
Item #: 12500815
Brand: Mahr
Model #: 4191032
Product Specifications
Electronic Inside Micrometers; Minimum Measurement (Inch): 2.7500 ; Minimum Measurement (mm): 70 ; Minimum Measurement (Decimal Inch): 2.7500 ; Maximum Measurement (Inch): 3.3500 ; Maximum Measurement (Decimal Inch): 3.3500 ; Maximum Measurement (mm): 85.00
| Minimum Measurement (Inch) | 2.7500 |
| Minimum Measurement (mm) | 70 |
| Minimum Measurement (Decimal Inch) | 2.7500 |
| Maximum Measurement (Inch) | 3.3500 |
| Maximum Measurement (Decimal Inch) | 3.3500 |
| Maximum Measurement (mm) | 85.00 |
| Resolution (mm) | 0.001 |
| Resolution (Decimal Inch) | 0.00005 |
| Accuracy (micro m) | 5 |
| Accuracy (mm) | 0.005 |
| Accuracy (Decimal Inch) | 0.0002 |
| Gage Depth (mm) | 97.00 |
| Gage Depth (Inch) | 3.8000 |
| Gage Depth (Decimal Inch) | 3.8000 |
| Thimble Type | Standard |
| Calibrated | No |
| Traceability Certification Included | None |
| Battery Type | 3 Volt Lithium CR2032 |
| Water Resistance Rating | IP52 |
| Number of Contact Points | 3 |
| Data Output | Digimatic; Opto RS-232C; USB |
| Measuring Face Material | Carbide-Tipped |
| Includes | Basic Units 44 Ewg; Measuring Head 44 Ak; Instruction Manual; Battery; Case |
| Trade Name | Micromar |
| Water/Dust Protection Guide | IP52 |
