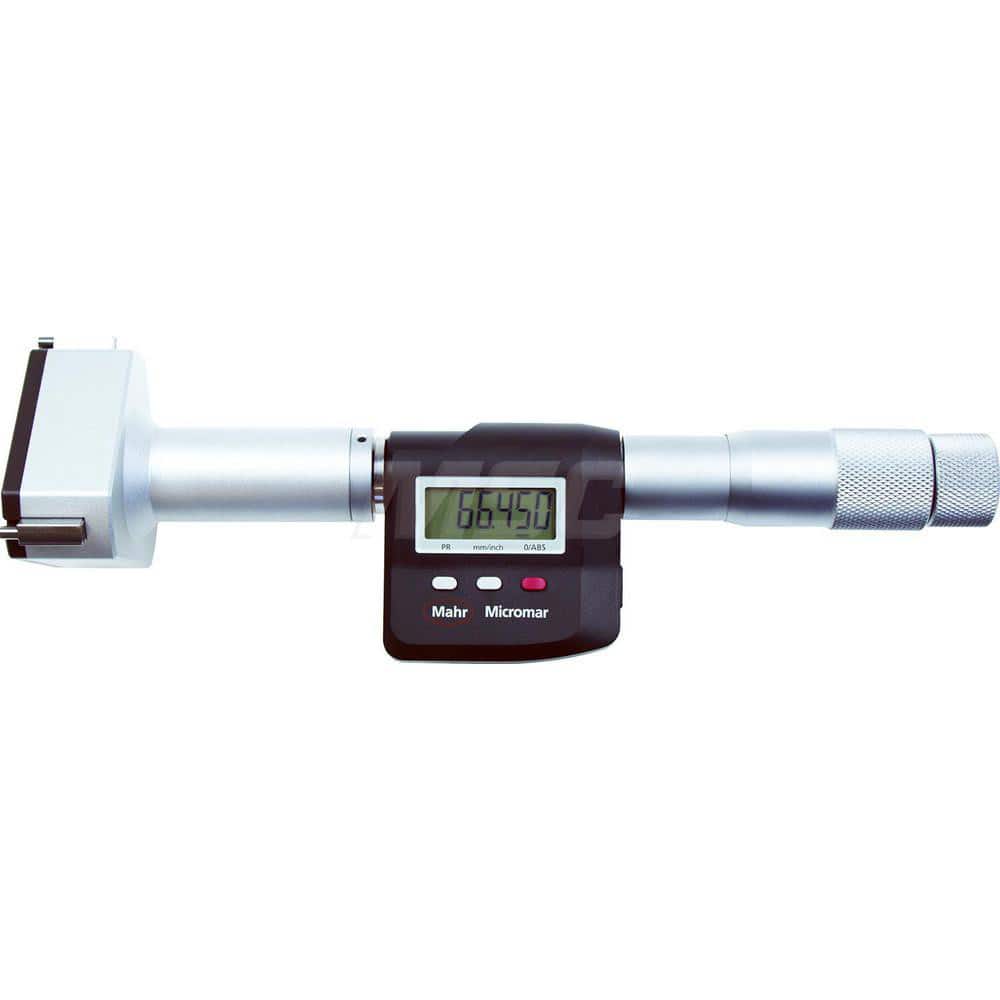

Mahr - Electronic Inside Micrometers; Minimum Measurement (Inch): 4.9000 ; Minimum Measurement (mm): 125 ; Minimum Measurement (Decimal Inch): 4.9000 ; Maximum Measurement (Inch): 5.9000 ; Maximum Measurement (Decimal Inch): 5.9000 ; Maximum Measurement
Item #: 12500823
Brand: Mahr
Model #: 4191035
Product Specifications
Electronic Inside Micrometers; Minimum Measurement (Inch): 4.9000 ; Minimum Measurement (mm): 125 ; Minimum Measurement (Decimal Inch): 4.9000 ; Maximum Measurement (Inch): 5.9000 ; Maximum Measurement (Decimal Inch): 5.9000 ; Maximum Measurement (mm): 150
| Minimum Measurement (Inch) | 4.9000 |
| Minimum Measurement (mm) | 125 |
| Minimum Measurement (Decimal Inch) | 4.9000 |
| Maximum Measurement (Inch) | 5.9000 |
| Maximum Measurement (Decimal Inch) | 5.9000 |
| Maximum Measurement (mm) | 150 |
| Resolution (mm) | 0.001 |
| Resolution (Decimal Inch) | 0.00005 |
| Accuracy (micro m) | 6 |
| Accuracy (mm) | 0.006 |
| Accuracy (Decimal Inch) | 0.0003 |
| Gage Depth (mm) | 132.00 |
| Gage Depth (Inch) | 5.2 |
| Gage Depth (Decimal Inch) | 5.2 |
| Thimble Type | Standard |
| Calibrated | No |
| Traceability Certification Included | None |
| Battery Type | 3 Volt Lithium CR2032 |
| Water Resistance Rating | IP52 |
| Number of Contact Points | 3 |
| Data Output | Digimatic; Opto RS-232C; USB |
| Measuring Face Material | Carbide-Tipped |
| Includes | Basic Units 44 Ewg; Measuring Head 44 Ak; Instruction Manual; Battery; Case |
| Trade Name | Micromar |
| Water/Dust Protection Guide | IP52 |
