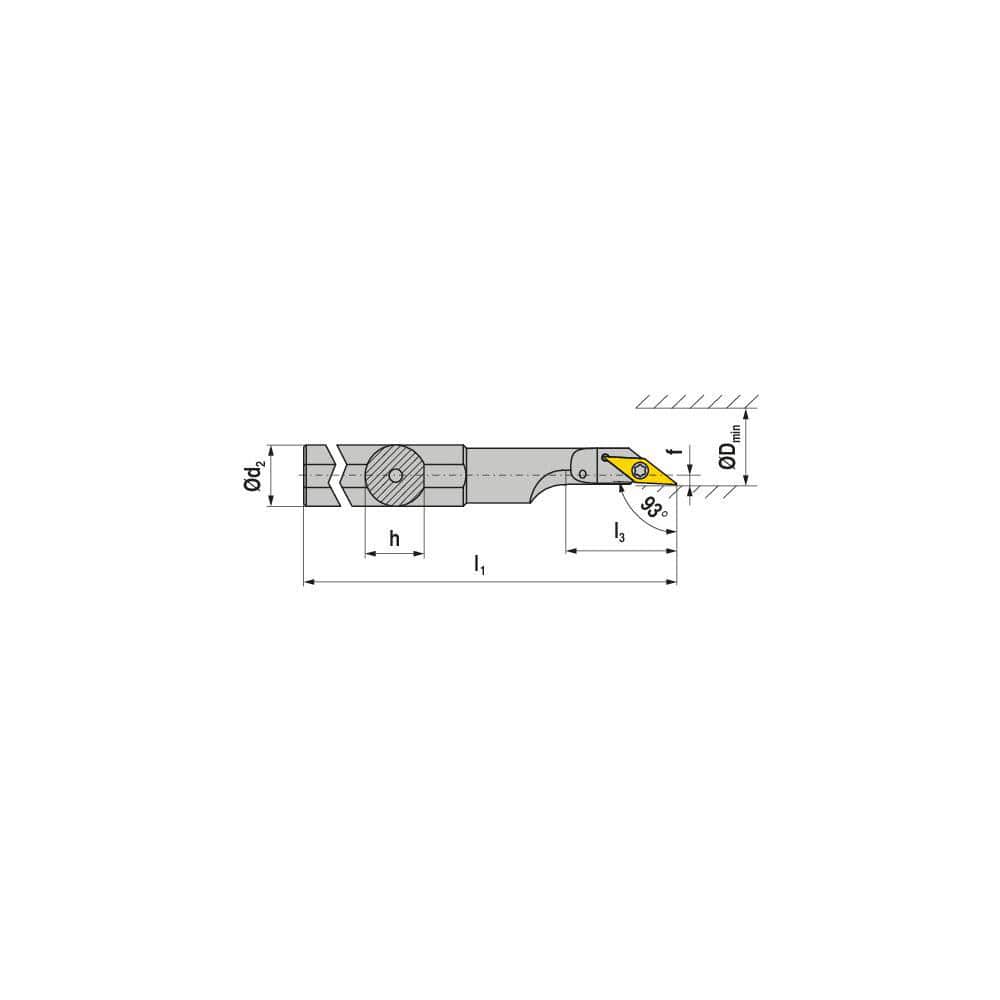

Indexable Boring Bar: A25M SVJCL 16, 28.00 mm Min Bore, 25.00 mm Shank Dia, 93.00° N/A Steel 150.0000″ OAL, Screw Clamping,
Item #: 12684494
Brand: Ceratizit
Model #: 70727225
Product Specifications
| Minimum Bore Diameter (mm) | 28.00 |
| Maximum Bore Depth (Decimal Inch) | 1.7323 |
| Toolholder Style | SVJCL |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 25.0000 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 25 |
| Overall Length (Decimal Inch) | 150.0000 |
| Overall Length (mm) | 150.00 |
| Overall Length (Inch) | 150 |
| Compatible Insert Size Code | VC..33. |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Rake Angle | 7.00 |
| Lead Angle | 93.00 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (mm) | 2.00 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
