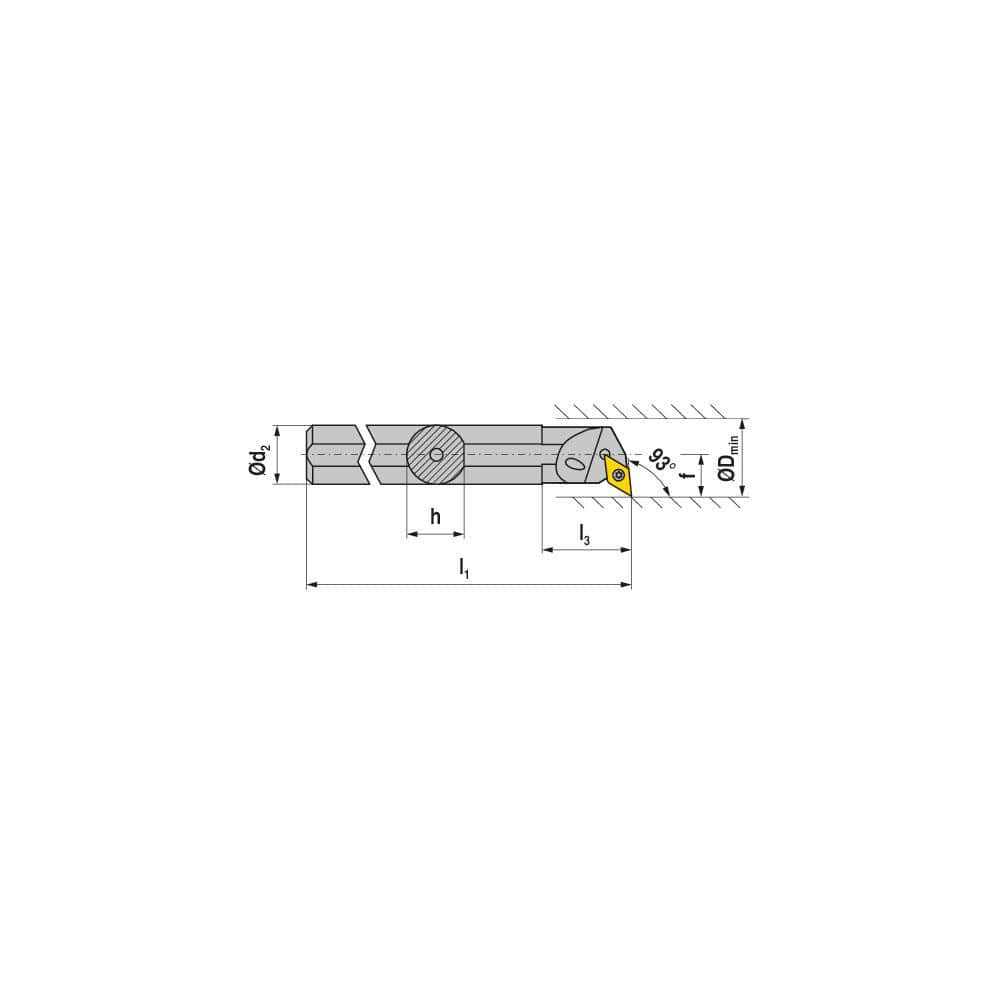

Indexable Boring Bar: S16R SDUCL 07, 21.00 mm Min Bore, 16.00 mm Shank Dia, 93.00° N/A Steel 200.0000″ OAL, Screw Clamping,
Item #: 12688248
Brand: Ceratizit
Model #: 70737016
Product Specifications
| Minimum Bore Diameter (mm) | 21.00 |
| Maximum Bore Depth (Decimal Inch) | 0.5118 |
| Toolholder Style | SDUCL |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 16.0000 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Inch) | 16 |
| Overall Length (Decimal Inch) | 200.0000 |
| Overall Length (mm) | 200.00 |
| Overall Length (Inch) | 200 |
| Compatible Insert Size Code | DC..21.5. |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Rake Angle | 7.00 |
| Lead Angle | 93.00 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0938 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (mm) | 11.00 |
| Primary Workpiece Material | Universal |
| Coolant Through | No |
