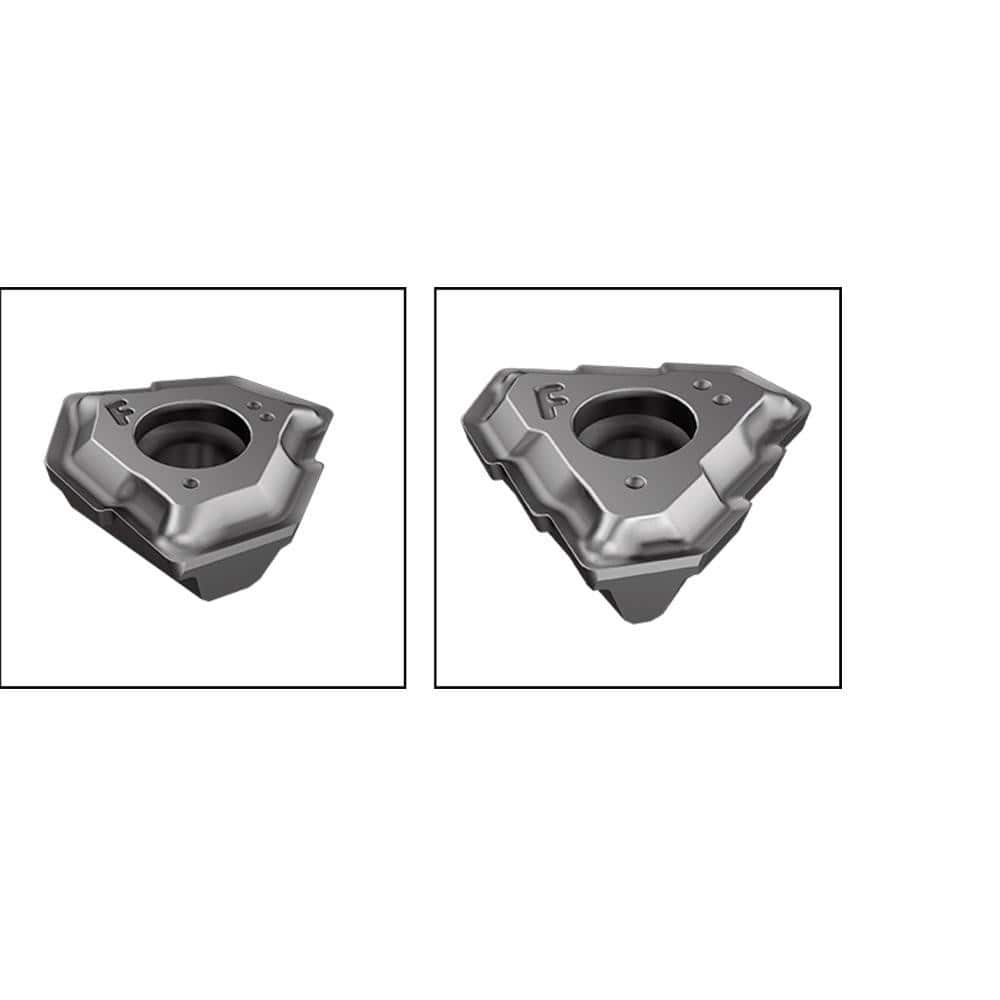

Indexable Drill Insert: TOGT12G IC908, Carbide Coated, 60 ° Triangle
Item #: 12956975
Brand: Iscar
Model #: 5567620
Product Specifications
| Insert Style | TOGT |
| Insert Size Code | 12 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Inscribed Circle (Decimal Inch) | 0.4563 |
| Cutting Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0197 |
| Chipbreaker | G |
| Series | TOGT |
| Coating Process | PVD |
| Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Hi-Temp Alloys; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Included Angle Degree | 60.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1693 |
| Coating/Finish | Coated |
