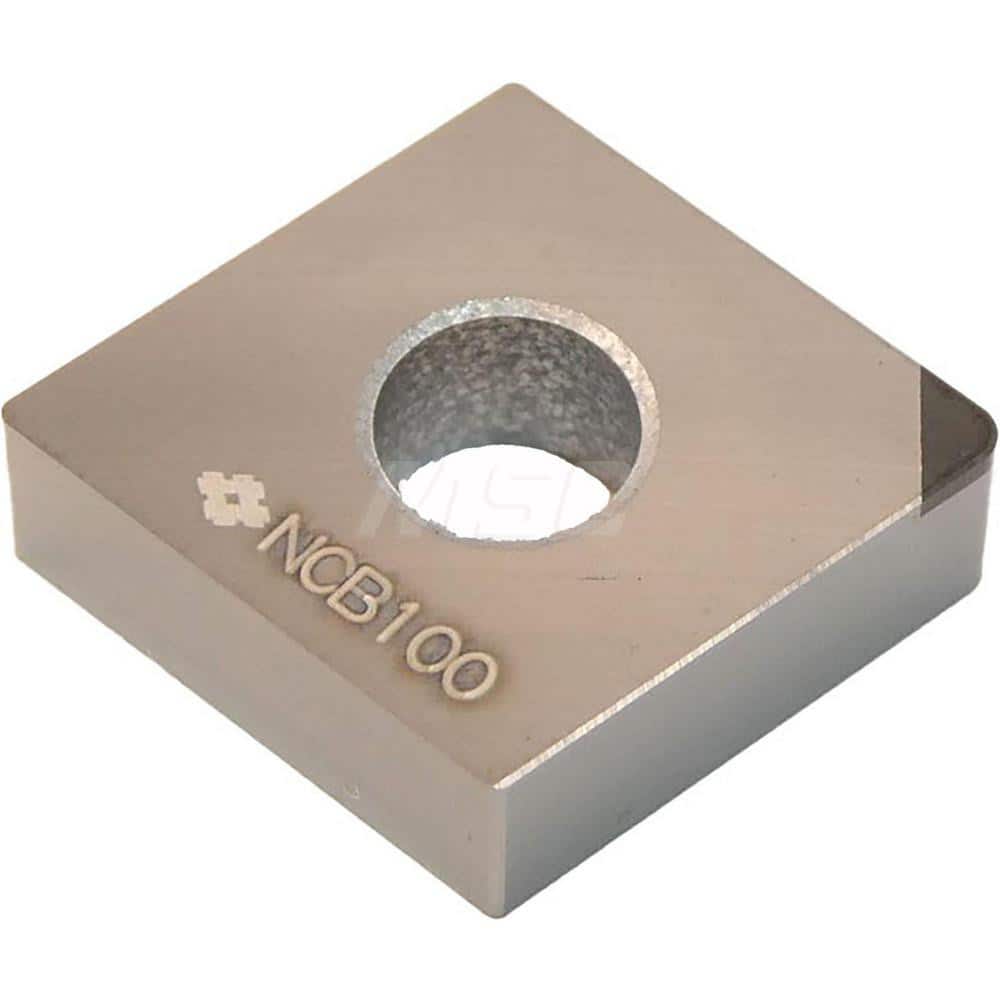

Turning Insert: NUCNGA433 NCB100, Cubic Boron Nitride Uncoated Finish, Neutral, 0.0906″ Long, 0.0472″ Corner Radius, 80.0 ° N/A Diamond, Series NCB100
Item #: 13108006
Brand: Sumitomo
Model #: 16P5FDC
Product Specifications
| Insert Style | CNG |
| Insert Shape Code | C |
| Insert Size Code | 433 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | NCB100 |
| Hole Diameter (Decimal Inch) | 5.1600 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | NCB100 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.0906 |
| Insert Length (mm) | 2.30 |
| Iso Code | NU-CNGA120412 |
| Manufacturers Catalog Number | NUCNGA433-NCB100 |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
