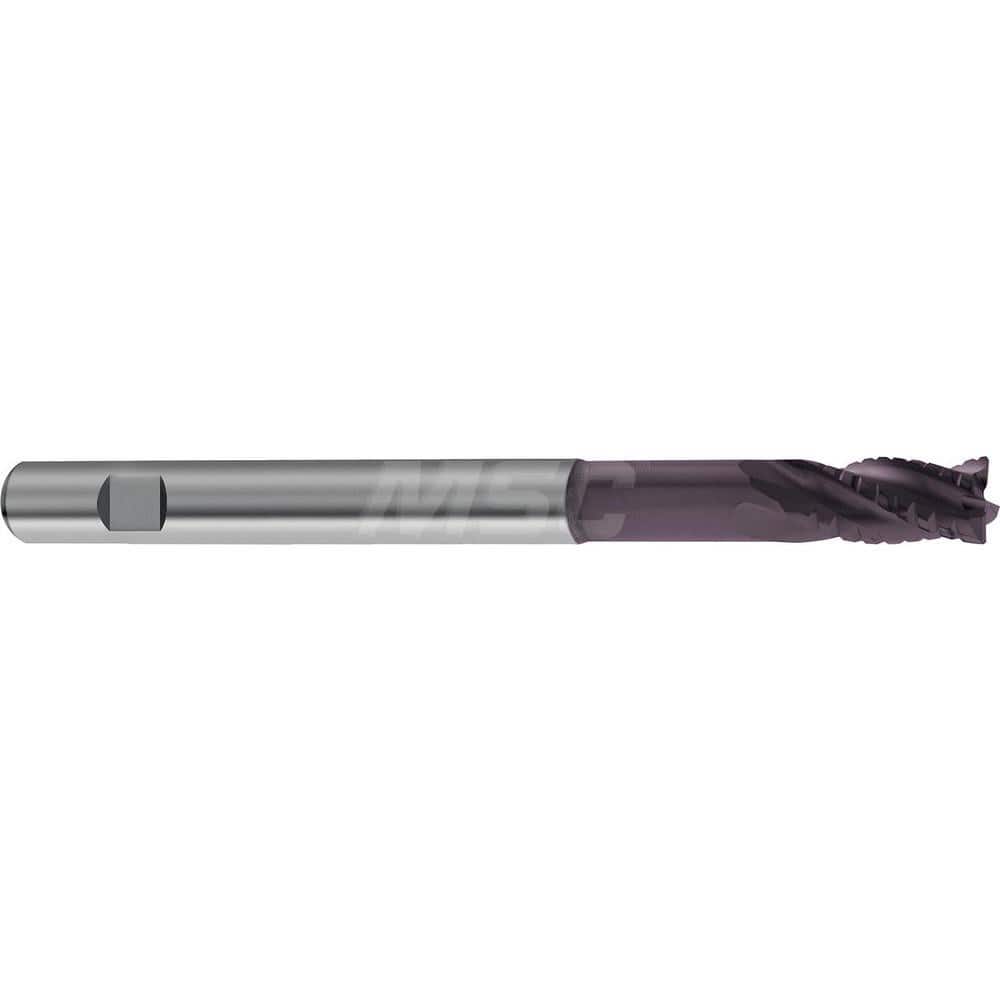

Guhring Steel and Cast Iron Roughing End Mill 10.00mm Diameter 10.0mm Shank 22.00mm Length of Cut 100mm Overall
Item #: 13157474
Brand: Guhring
Model #: 9068860100000
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Number of Flutes | 4 |
| Pitch | Medium |
| Length of Cut (mm) | 22.0000 |
| Shank Diameter (mm) | 10.0000 |
| Material | Solid Carbide |
| Finish/Coating | FIREX |
| Overall Length (mm) | 100.0000 |
| Centercutting | Yes |
| Helix Angle | 30.00 |
| Extended Reach | Yes |
| Chamfer Width (mm) | 0.300 |
| Variable Helix | Yes |
| Coolant Induced | No |
| Chamfer Angle | 45.000 |
| Single or Double End | Single; Corner Chamfer |
| Cutting Direction | Right |
| Flute Direction | Right |
| Length Type | Extra Long |
| Reach Length (mm) | 48.00 |
| Series/List | 6886 |
