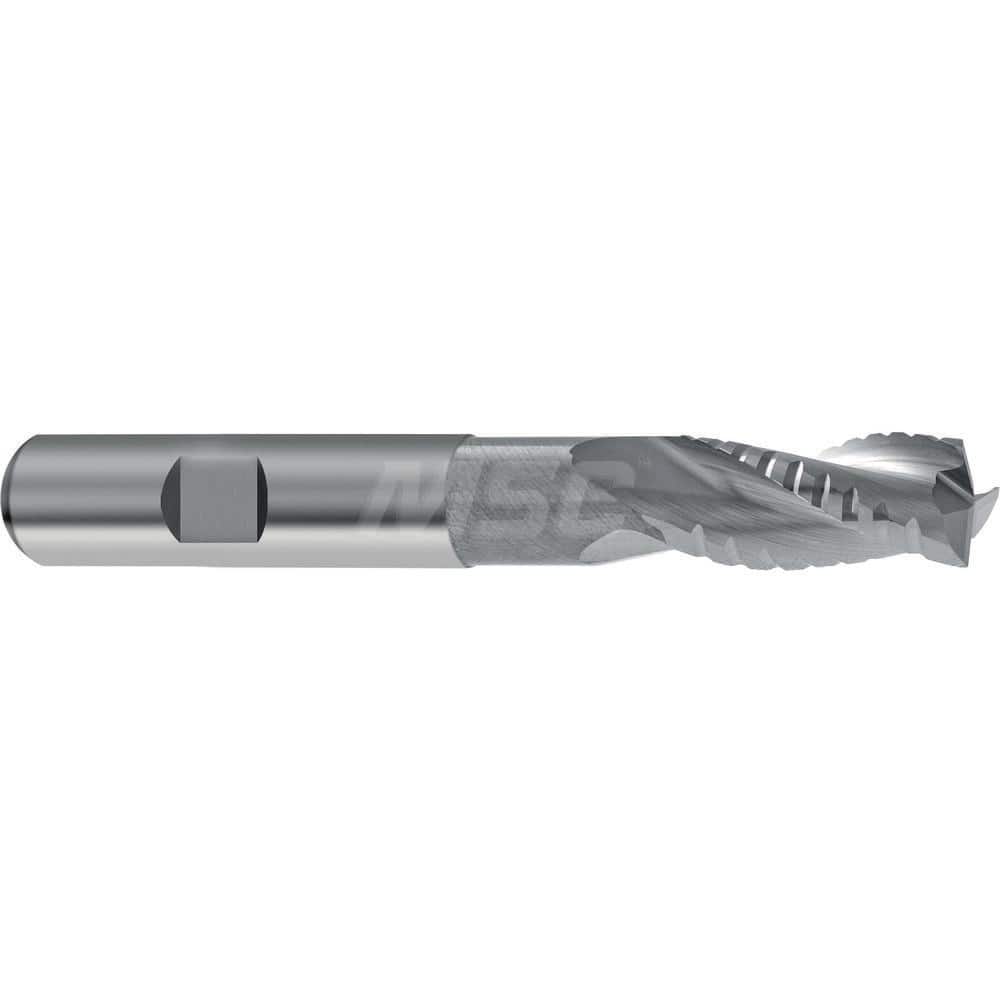

Guhring Optimized Roughing End Mill for Aluminum 12.00mm Diameter 12.0mm Shank 26.00mm Length of Cut 93mm Overall
Item #: 13157532
Brand: Guhring
Model #: 9068710120000
Product Specifications
| Mill Diameter (mm) | 12.00 |
| Mill Diameter (Decimal Inch) | 0.4724 |
| Number of Flutes | 3 |
| Pitch | Fine |
| Length of Cut (mm) | 26.0000 |
| Shank Diameter (mm) | 12.0000 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Overall Length (mm) | 93.0000 |
| Centercutting | Yes |
| Helix Angle | 29.00 |
| Extended Reach | Yes |
| Chamfer Width (mm) | 0.500 |
| Variable Helix | Yes |
| Coolant Induced | No |
| Chamfer Angle | 45.000 |
| Single or Double End | Single; Corner Chamfer |
| Cutting Direction | Right |
| Flute Direction | Right |
| Length Type | Long |
| Reach Length (mm) | 46.00 |
| Series/List | 6871 |
